EXTENSIVE COMPATIBILITY
Intel: LGA 1150, 1151, 1155, 1156, LGA1200, LGA 1700, LGA1366, LGA2011, LGA2011-3, LGA2066
AMD: AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2

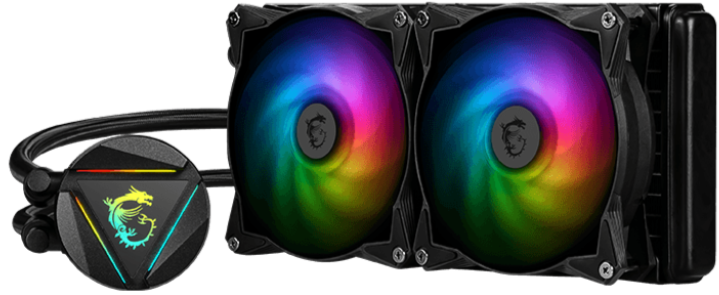

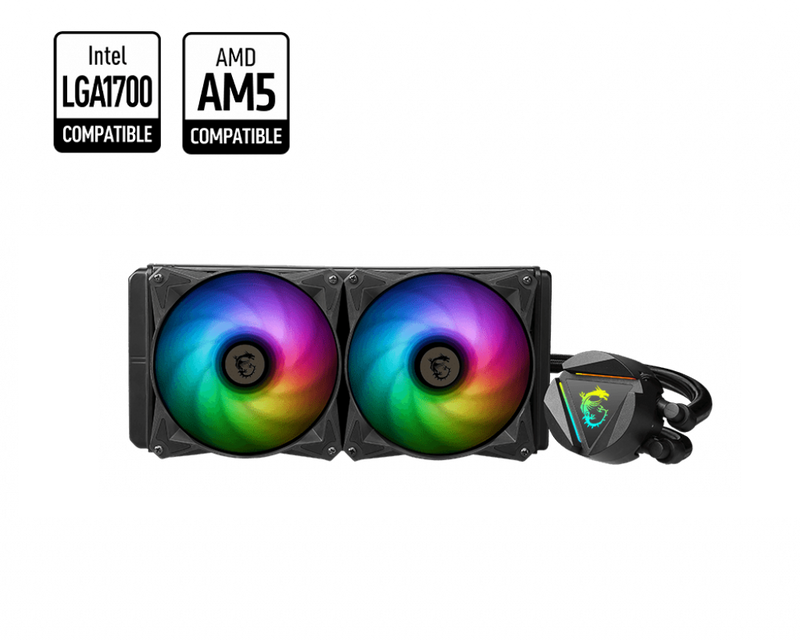

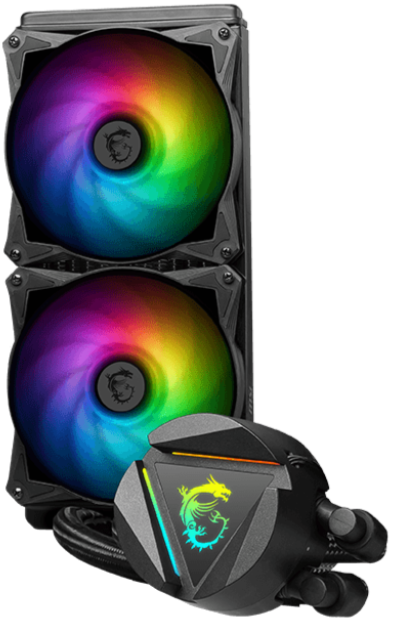

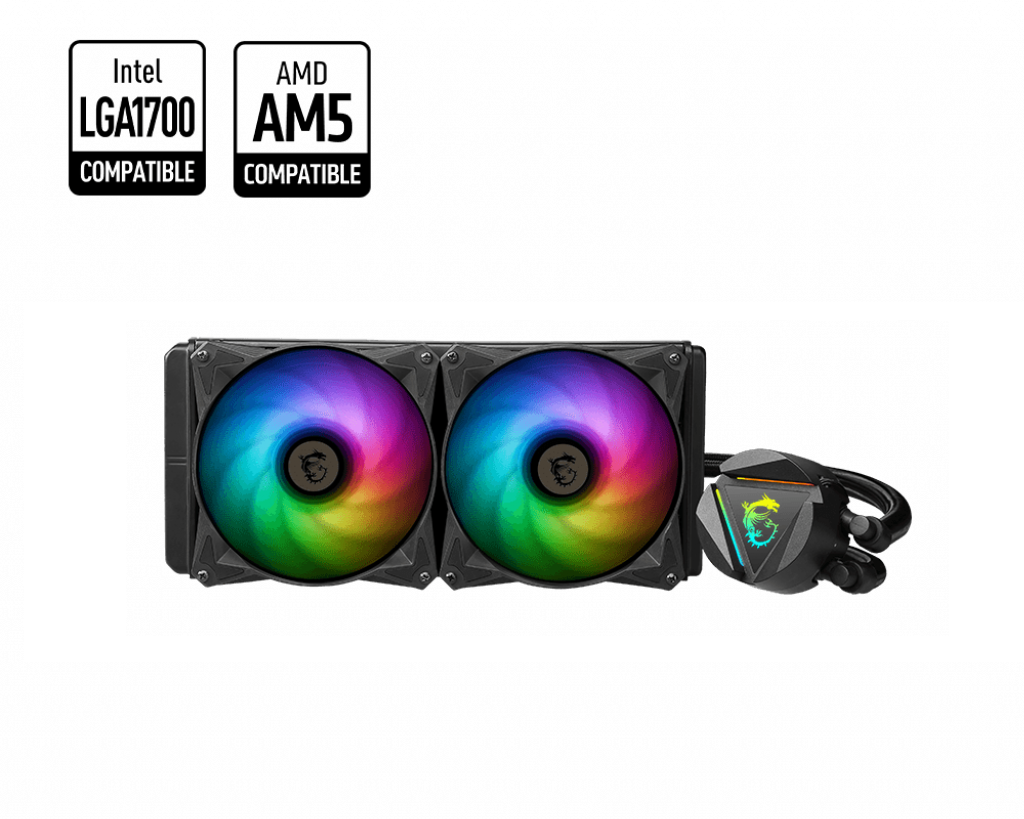

MAG CORELIQUID 240R Technical Specifications
| Number of Fans / Fan Dimension | 2 / 120 x 120 x 25mm |
| Fan Speed | 500 - 2000 RPM |
| Fan Power / Current / Voltage | 1.8 W / 0.15 A / 12V DC |
| Fan Bearing | Two Ball Bearing |
| Fan Air Pressure | 0.23 - 2.39 mmH2O |
| Fan Noise Level | 14.3 - 34.3 dBA |
| Fan Air Flow | 21.63 - 78.73 CFM |
| Fan Cables Lengths | 350 mm / 13.78 inches (4-pin PWM), 550 mm / 21.65 inches (5V ARGB) |
| Radiator Dimensions | 274 x 120 x 27 mm / 10.79 x 4.7 x 1.06 inches |
| Radiator Tubing Length | 400 mm / 15.75 inches |
| Pump Block Dimensions | 80.57x 66.82 x 48.58 mm / 3.17 x 2.63 x 1.91 inches |
| Block ARGB 5V Cable Length | 400 mm / 15.75 inches |
| Pump Power / Current / Voltage | 4.08 W / 0.34 A / 12V DC |
| Accessories | 1 to 2 Fan PWM cable; PSU Molex 4-Pin to 4-Pin (2 Pin Wired) Fan cable |
| Intel Socket Compatibility | LGA 1150 / 1151 / 1155 / 1156 / 1200 / 1700 , LGA 1366 / 2011 / 2011-3 / 2066 |
| AMD Socket Compatibility | AM4 / FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 |
