FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
4-pin PWM
Bearing
Rotational speed (+/- 10%)
1300 RPM
Rotational speed with L.N.A. (+/- 10%)
900 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
63,4 m³/h
Acoustical noise
19,8 dB(A)
Acoustical noise with L.N.A.
12,6 dB(A)
Static pressure
1,68 mm H₂O
Static pressure with L.N.A.
1,21 mm H₂O
Input power (max.)
0,6 W
Max. input current
0,05 A
Operating voltage
12 V
MTTF
> 150.000 h

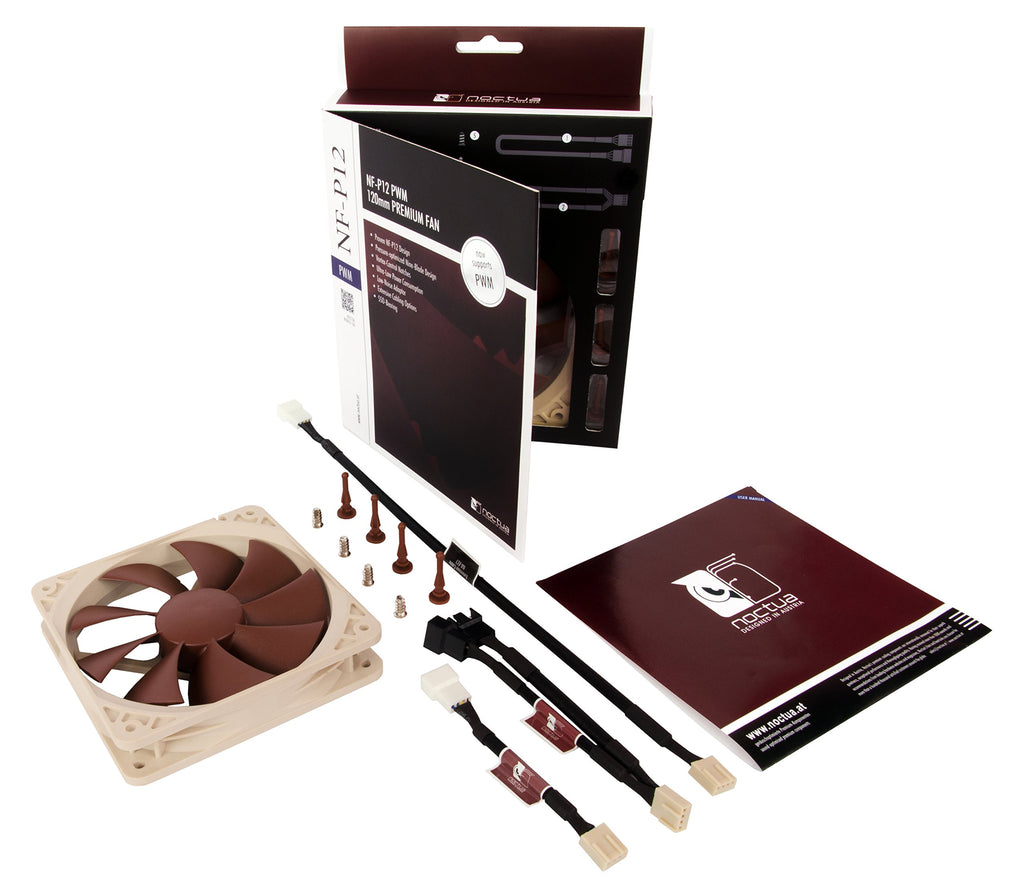

Scope of delivery
- Low-Noise Adapter (L.N.A.)
- 4-Pin Y-Cable
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
6 years
