描述

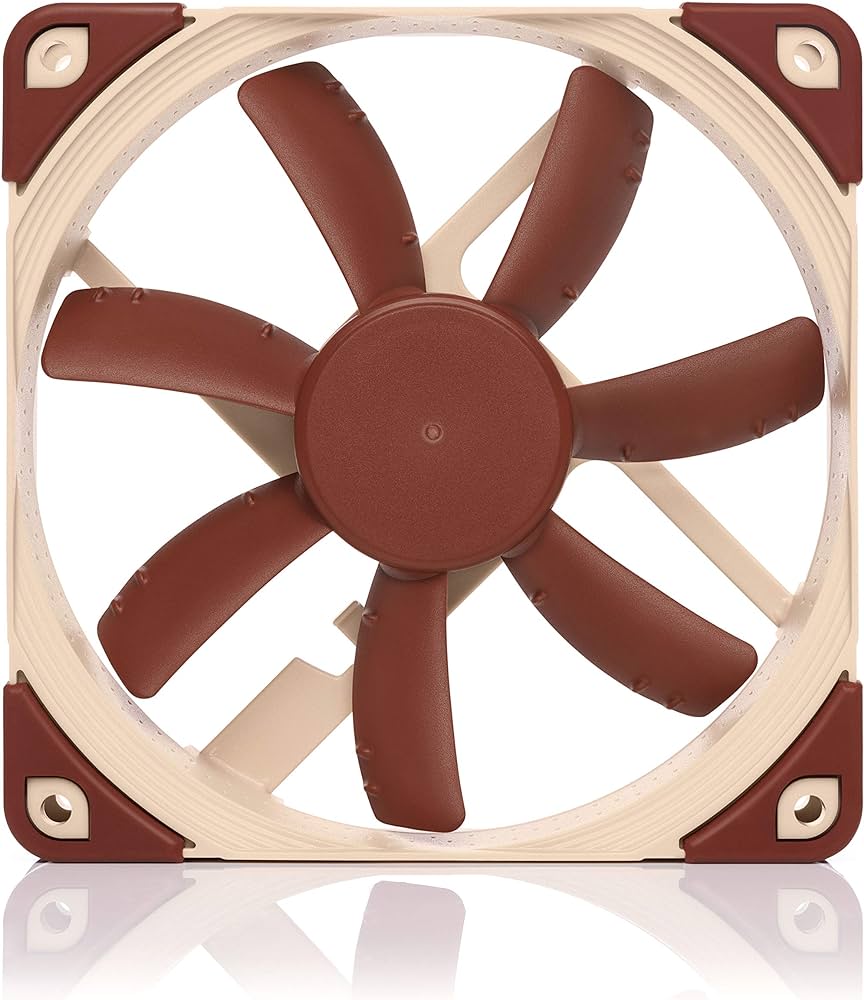

FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
S-Series with Anti-Stall Knobs
Frame technology
Rotational speed (+/- 10%)
1200 RPM
Rotational speed with L.N.A. (+/- 10%)
900 RPM
Rotational Speed with U.L.N.A. (+/- 10%)
700 RPM
83,2 m³/h
Acoustical noise
17,8 dB(A)
Acoustical noise with L.N.A.
10,7 dB(A)
Acoustical noise with U.L.N.A.
7,4 dB(A)
Static pressure
1,19 mm H₂O
Static pressure with L.N.A.
0,73 mm H₂O
Static pressure with U.L.N.A.
0,51 mm H₂O
Input power (typical)
1,19 W
Input power (max.)
1,44 W
Input current (typical)
0,1 A
Max. input current
0,12 A
Operating voltage
12 V
MTTF
> 150.000 h

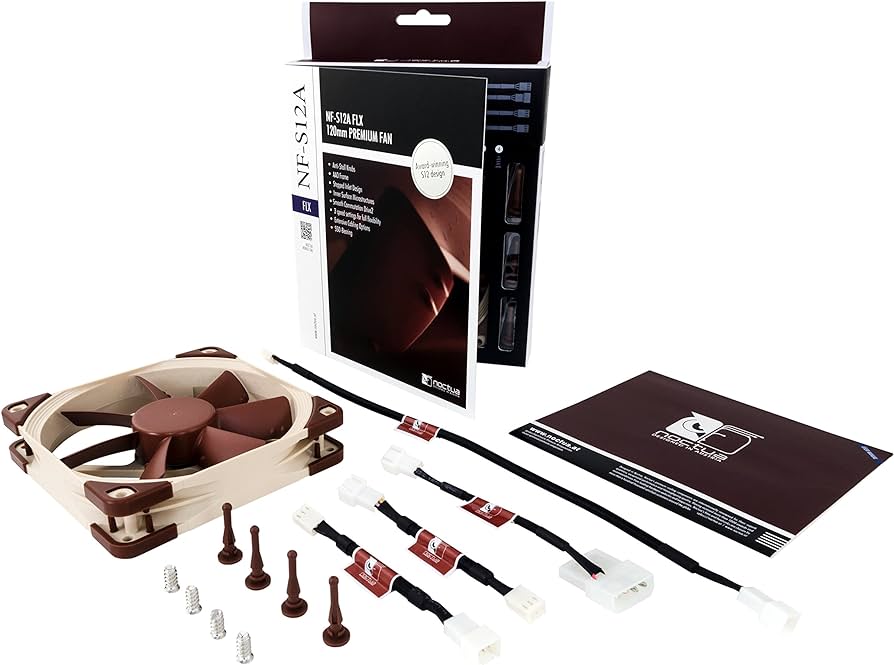

Scope of delivery
- Low-Noise Adaptor (L.N.A.)
- Ultra-Low-Noise Adaptor (U.L.N.A.)
- 3:4-Pin Adaptor
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
6 years
