NOCTUA
價格:
HK$599.00

描述

NH-L12Sx77 Header

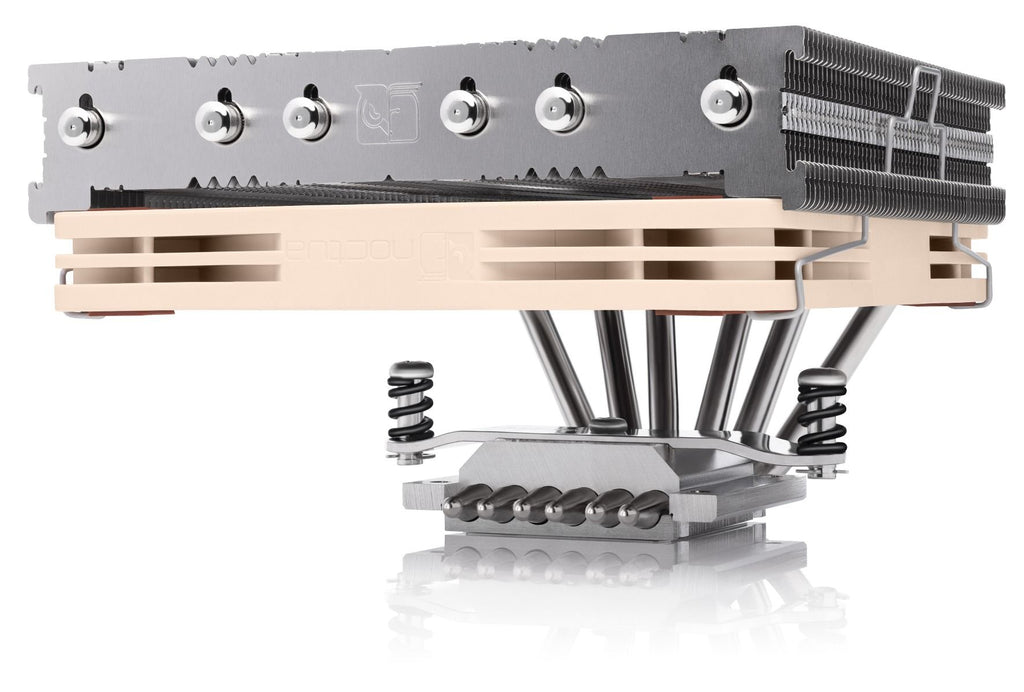

The NH-L12Sx77 is a slightly taller variant of the renowned NH-L12S, offering improved cooling performance as well as enhanced motherboard and RAM compatibility. With six instead of four heatpipes, it provides additional thermal headroom while maintaining the same default fan setup with the fan installed below the fin stack blowing upwards, which not only ensures optimal acoustics in situations with perforated case panels right above the cooler, but also helps to exhaust hot air from the case. Due to the increased height, clearance for tall motherboard heatsinks or RAM modules could be improved significantly, yet at a height of 77mm, the NH-L12Sx77 is still compact enough to fit popular Small Form Factor (SFF/SFX) cases such as the Fractal Design Terra, Silverstone Milo ML12 or Louqe Raw S1. Topped off with the renowned SecuFirm2 mounting system, Noctua’s renowned NT-H2 thermal compound, the NH-L12Sx77 is the perfect choice for SFF builds that require strong cooling performance but cannot fit the larger NH-C14S or NH-D9L.

NH-L12Sx77

NH-L12Sx77

NF-A9x14

NT-H2

Better performance, better compatibility

The NH-L12Sx77 not only improves performance but also motherboard and RAM compatibility versus the original NH-L12S: Due to the x77 version’s taller construction, clearance for RAM modules as well as motherboard heatsinks and shrouds could be increased significantly, which makes the cooler an easy fit in most configurations.

High clearance mode

Run with the NF-A12x15 fan installed on top, the NH-L12Sx77 provides extended clearance underneath the fin stack. This way, it is fully compatible with chipset coolers and RAM modules with up to 56mm in height (compared to 44mm in the default configuration with the fan installed underneath the fin stack).

NF-A12x15 slim 120mm premium fan

Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A12x15 is a premium-grade slim 120mm fan. Its outstanding efficiency enables the NH-L12Sx77 to combine excellent cooling performance with superb quietness of operation.

NT-H2 next-gen thermal compound

For high-end builds in compact cases, every degree counts. This is why the NH-L12Sx77 includes a tube of Noctua’s next-generation NT-H2 compound that provides even better performance than the renowned NT-H1, allowing you to achieve the best possible cooling results.

NH-L12Sx77
Measurements
  • Height (without fan): 77 mm
  • Width (without fan): 128 mm
  • Depth (without fan): 131 mm
  • Height (with fan): 77 mm
  • Width (with fan): 128 mm
  • Depth (with fan): 131 mm
  • Weight (without fan): 410 g
  • Weight (with fan): 540 g
Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Cooler Specifications

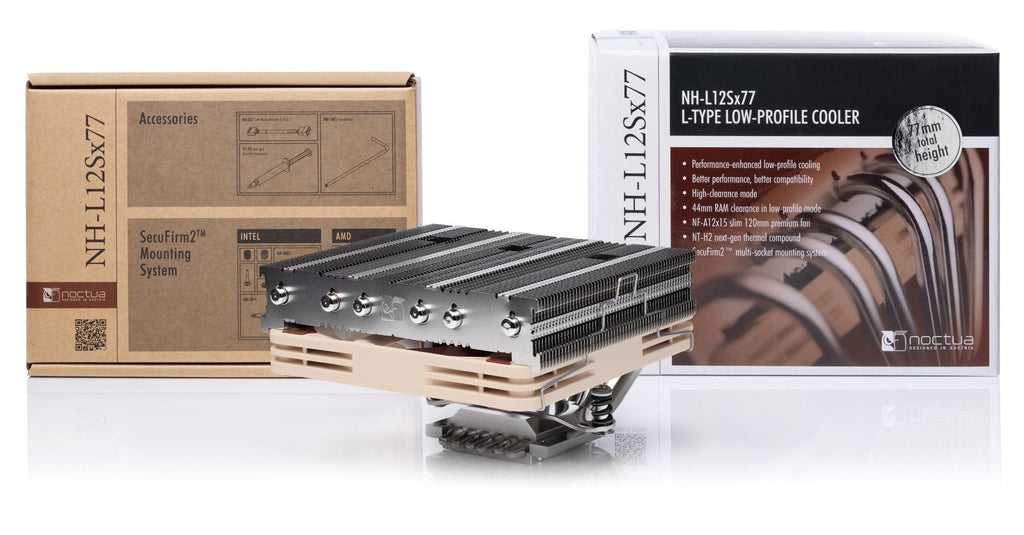

Scope of delivery
  • NF-A12x15 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H2 high-grade thermal compound
  • SecuFirm2 mounting kit
  • Noctua metal case-badge
Fan compatibility

120x120x15, 120x120x25

NH-L12Sx77 banner

Performance-enhanced low-profile cooling

With 6 instead of 4 heatpipes, the NH-L12Sx77 offers significantly more headroom for higher heat-loads compared to the original NH-L12S. As such, it is ideal for getting the most out of today’s high-end CPUs in compact cases.

NH-D15
Cooler Specification
Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
Height (without fan)

77 mm
Width (without fan)

128 mm
Depth (without fan)

131 mm
Weight (without fan)

410 g
Height (with fan)

77 mm
Width (with fan)

128 mm
Depth (with fan)

131 mm
Weight (with fan)

520 g
Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR

100
Max. TDP

see NSPR
Fan compatibility

120x120x15 & 120x120x25
Scope of delivery

  • NF-A12x15 PWM premium fan
  • NA-RC7 Low-Noise Adaptor (L.N.A.)
  • NT-H2 high-grade thermal compound
  • SecuFirm2™ mounting kit
  • Noctua metal case-badge
Warranty
 6 Years
FAN Specification
Model

1x Noctua NF-A12x15 PWM
Bearing

SSO2
Max. rotational speed (+/- 10%)

1850 RPM
Max. rotational speed with L.N.A. (+/- 10%)

1400 RPM
Min. rotational speed @ 20% PWM (+/-20%)

450 RPM
Max. airflow

94,2 m³/h
Max. airflow with L.N.A.

70,8 m³/h
Max. acoustical noise

23,9 dB(A)
Max. acoustical noise with L.N.A.

16,8 dB(A)
Input power (max.)

1,56 W
Voltage range

12 V
MTTF

> 150.000 h
