Cooler Specification
Intel LGA1700 (included since Q1 2022, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4-UxS)
Height (without fan)
158 mm
Width (without fan)
125 mm
Depth (without fan)
45 mm
Height (with fan)
158 mm
Width (with fan)
125 mm
Depth (with fan)
71 mm
Weight (with fan)
755 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
129
Max. TDP
see NSPR
Fan compatibility
120x120x25

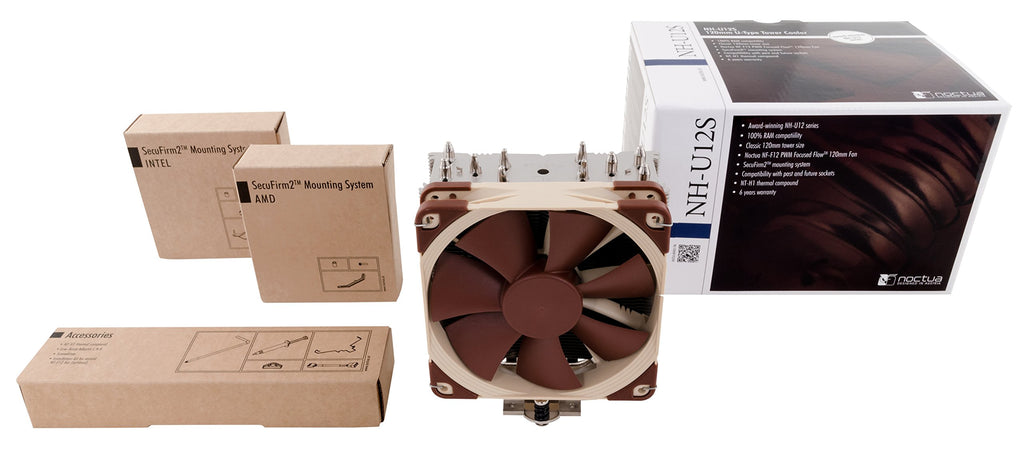

Scope of delivery
- NF-F12 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Anti-vibration pads and fan-clips for second NF-F12
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Bearing
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
93,4 m³/h
Max. acoustical noise
22,4 dB(A)
Max. acoustical noise with L.N.A.
18,6 dB(A)
Voltage range
12 V
MTTF
> 150.000 h
