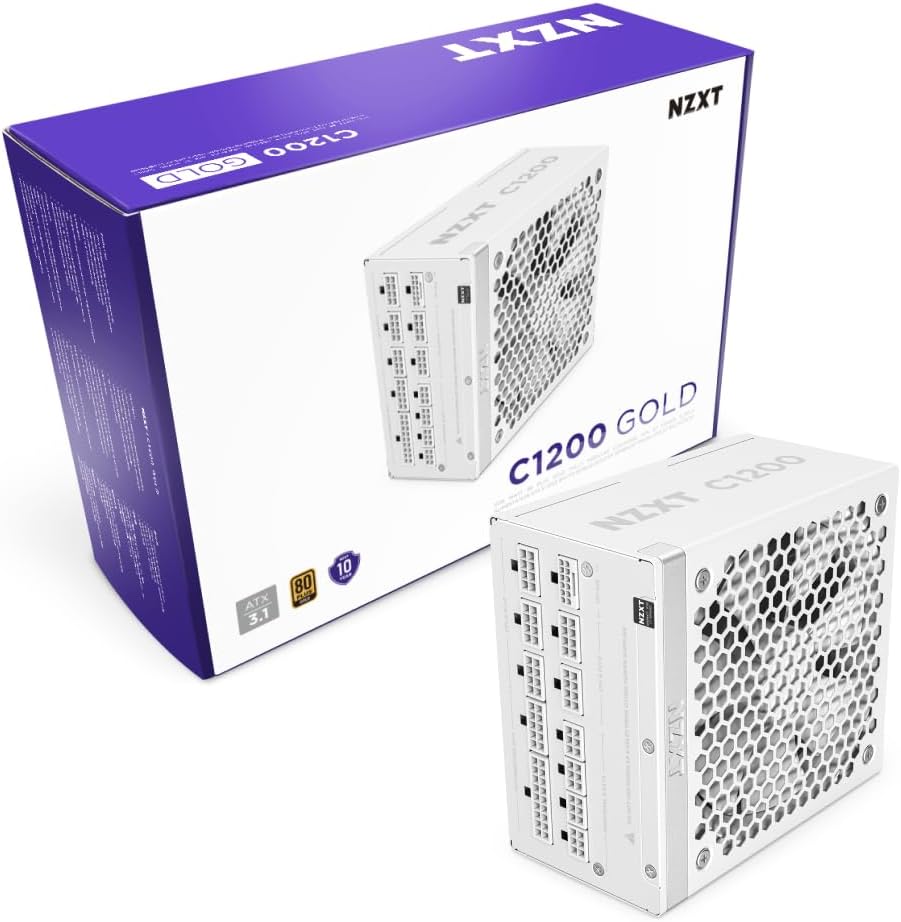

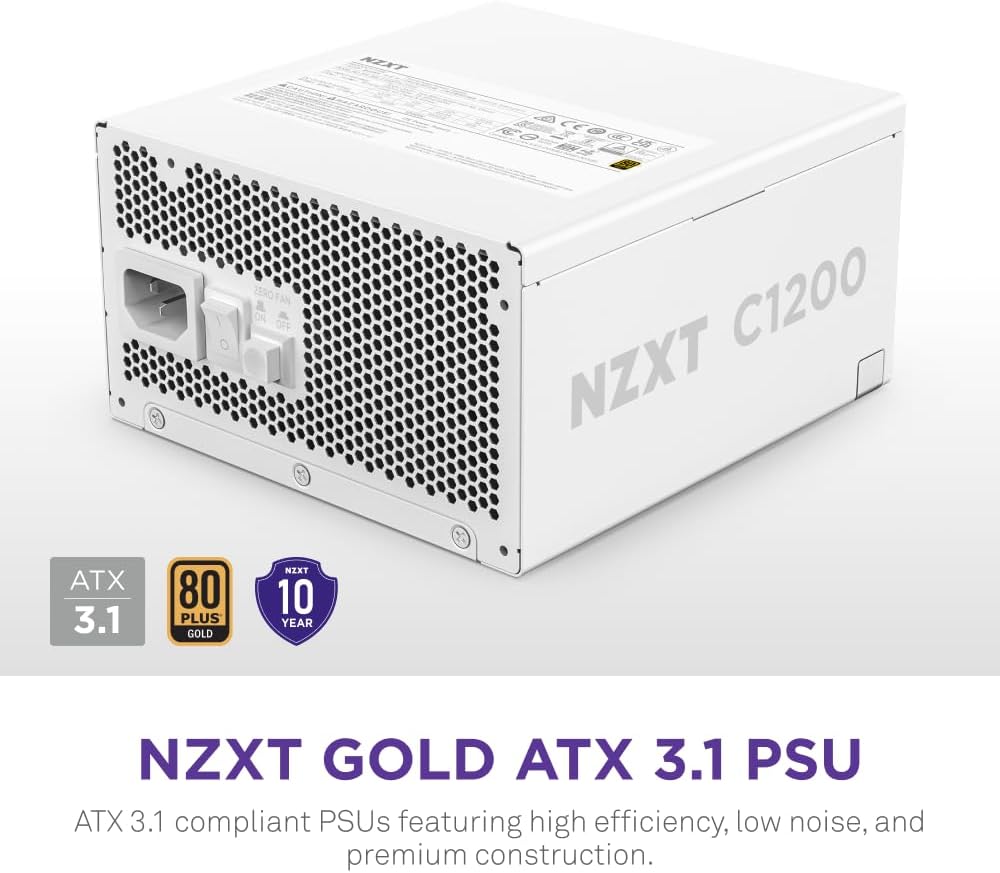

NZXT 1200W C1200 Gold Matte White 白色 ATX3.1 80Plus Gold Full Modular Power Supply (PA-2G2BW-UK)

Output Connectors

• 24-pin ATX Power Cable:1

• 4+4-pin CPU Power Cable:1

• 8-pin CPU Power Cable:1

• 6+2-pin PCIe Power Cable:3

• 16-pin (12+4) 12V-2x6 PCIe Cable:1

• SATA Cable:12

• Peripherals Cable:4

Cable Specs

• 24-pin ATX Power Cable:600mm with nylon sleeving

• 4+4-pin CPU Power Cable:700mm with nylon sleeving

• 8-pin CPU Power Cable:700mm with nylon sleeving

• 6+2-pin PCIe Power Cable:650mm with nylon sleeving

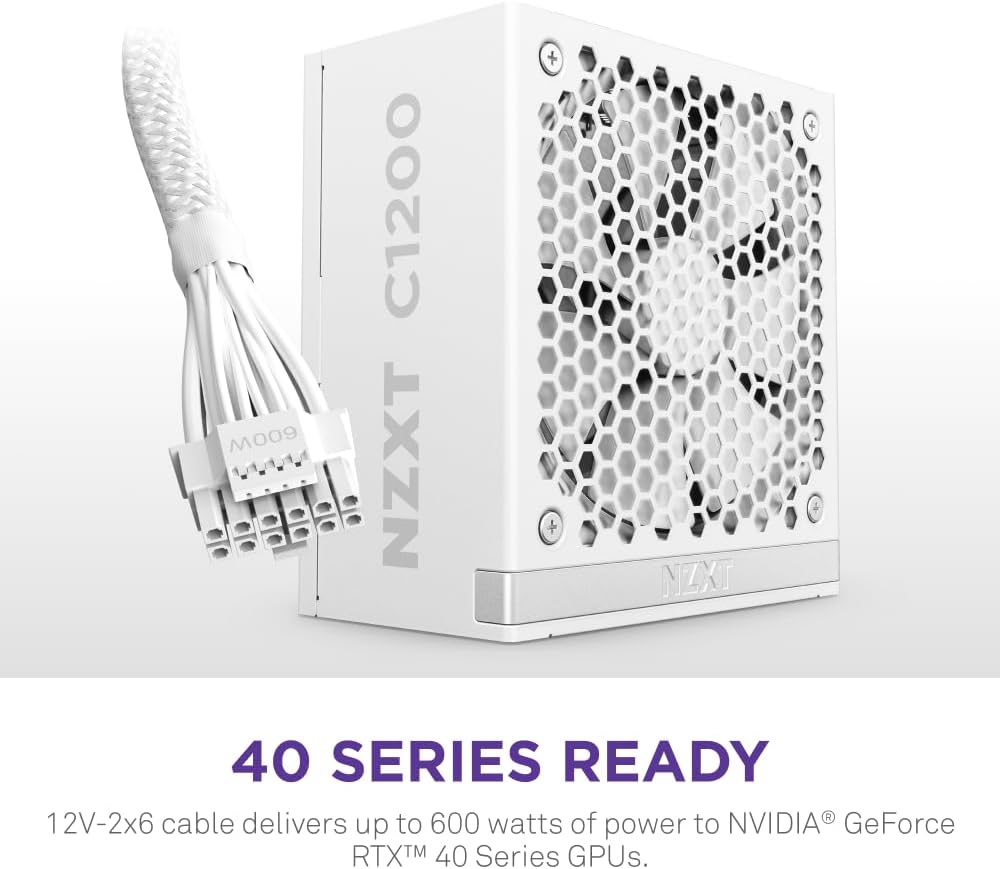

• 16-pin (12+4) 12V-2x6 PCIe Cable:650mm with nylon sleeving

• SATA Cable:500 + 150mm

• Peripherals Cable:500 + 150mm

AC Input Rating

• 100 - 240Vac:14A 50Hz-60Hz

• 200 - 240Vac:7A 50Hz-60Hz (China & South Korea)

DC Output Rating

• 3.3V / +5V:22A (120W)

• 12V:100A (1200W)

• 5Vsb:3A (15W)

• Total:1200W

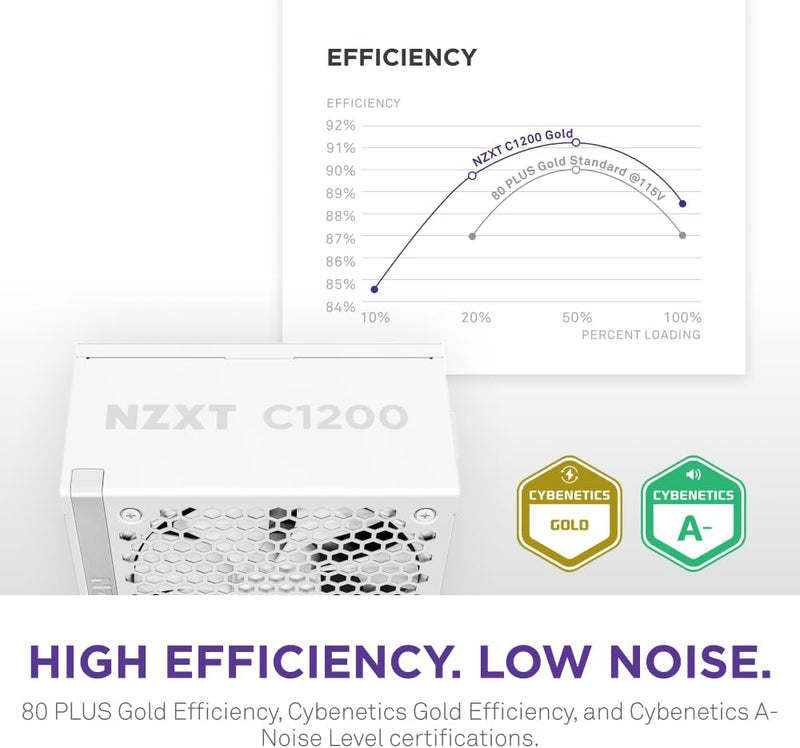

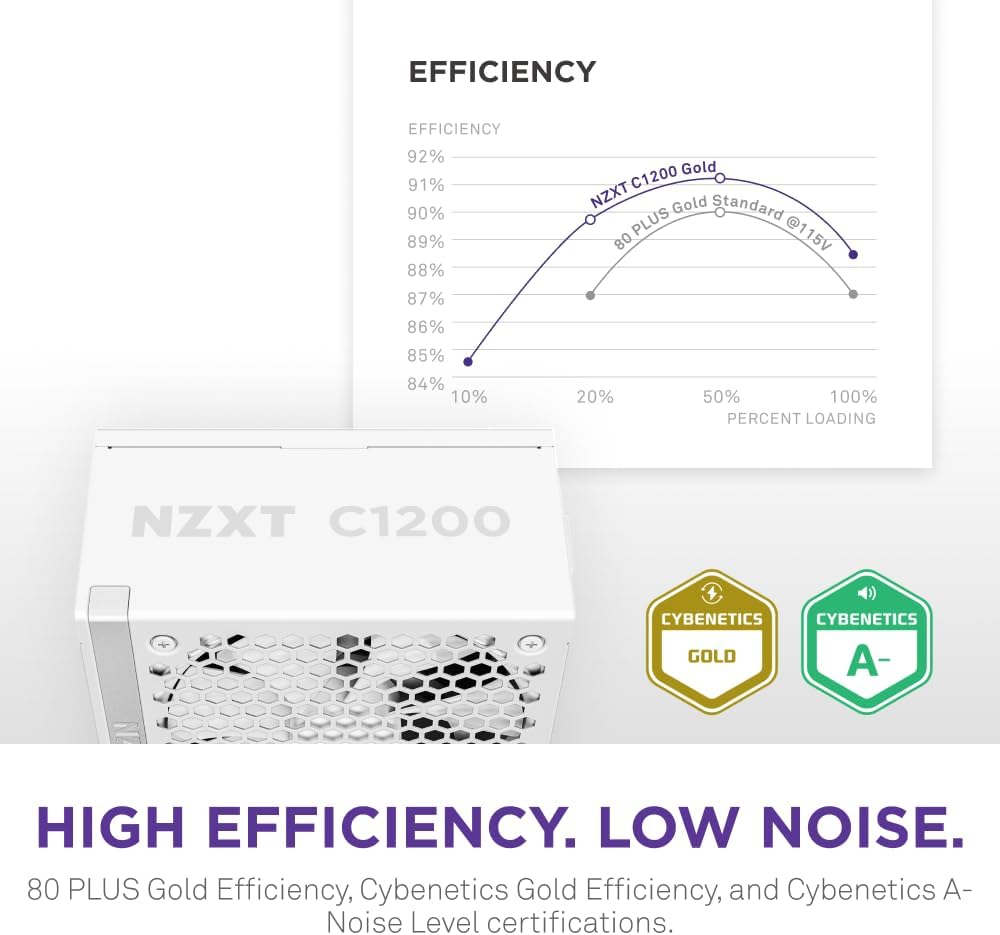

Energy Efficiency

• Rating:80 Plus Gold

• 10% loading:85% @115Vac

• 20% loading:90.1% @115Vac

• 50% loading:91.6% @115Vac

• 100% loading:88.7% @115Vac

Electrical Features

• PF Correction:Active @0.99

• Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /

Fan Specs

• Dimensions:135 x 135 x 25 mm

• Speed:2300 ± 10% RPM

• Airflow:93.02 CFM (Min.)

• Noise:44.5 dBA max

• Bearing:Fluid Dynamic Bearing (FDB)

Operation

• MTBF:100,000 hours

• Temperature:0 - 50 °C

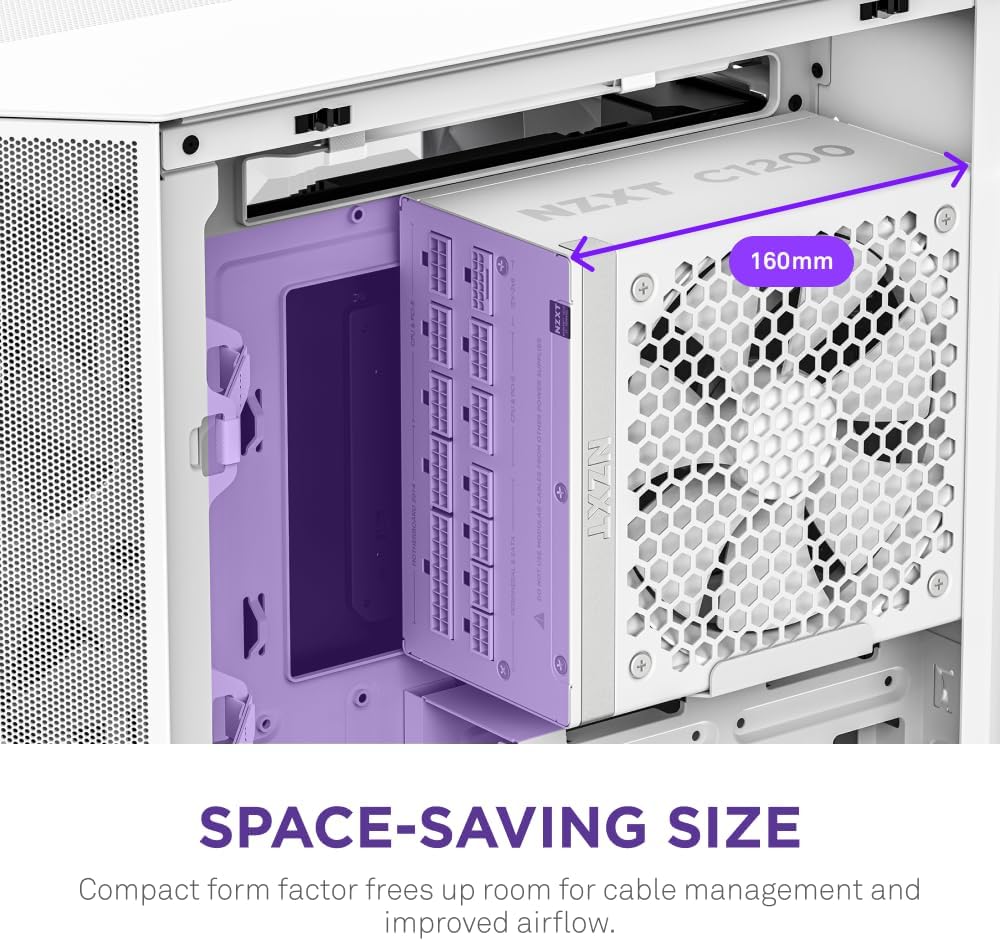

Dimensions

• Width:150 mm

• Height:86 mm

• Depth:160 mm

General

• Material(s):Steel, PCB and Plastic

• Compliance Standard:ATX12V v3.1 / EPS12V v2.92

• Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

• Warranty:10 Years

• Model Number (Black):PA-2G2BB-CN / PA-2G2BB-UK / PA-2G2BB-US / PA-2G2BB-EU / PA-2G2BB-JP / PA-2G2BB-AU

• Model Number (White):PA-2G2BW-CN / PA-2G2BW-UK / PA-2G2BW-US / PA-2G2BW-EU / PA-2G2BW-JP / PA-2G2BW-AU

• EAN (Black):5056547204604 (CN) / 5056547204611 (UK) / 5056547204628 (US) / 5056547204635 (EU) / 5056547204642 (JP) / 5056547204659 (AU)

• EAN (White):5056547206240 (CN) / 5056547206257 (UK) / 5056547206264 (US) / 5056547206271 (EU) / 5056547206288 (JP) / 5056547206295 (AU)

• UPC (Black):810074844673 (CN) / 810074844680 (UK) / 810074844697 (US) / 810074844703 (EU) / 810074844710 (JP) 810074844727 (AU)

• UPC (White):810074846301 (CN) / 810074846318 (UK) / 810074846325 (US) / 810074846332 (EU) / 810074846349 (JP) / 810074846356 (AU)
