Name: NZXT H5 FLOW 2024 Compact Black 黑色 Tempered Glass ATX Airflow Case CC-H52FB-01
Brand: NZXT
SKU: CAS000709
Price: 760.0 HKD
Availability: InStock

Motherboard Support	E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type	Mid-Tower
Case Material	SGCC Steel, Dark Tinted Tempered Glass (Black)

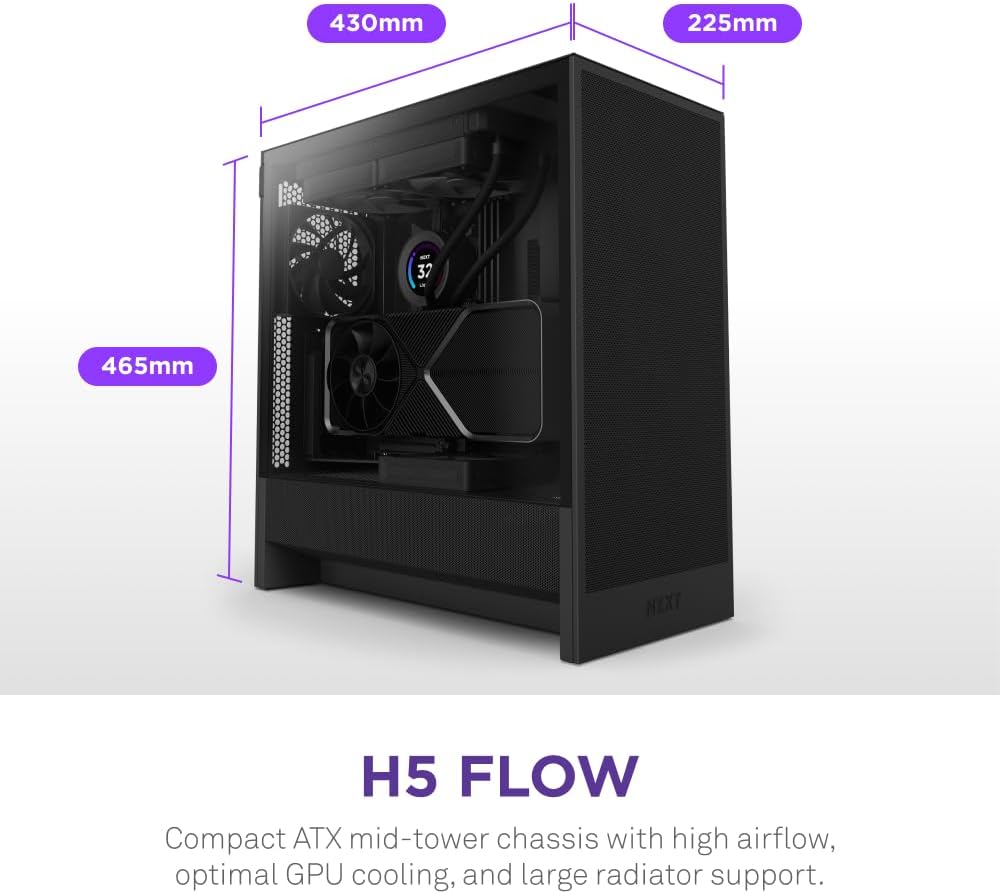

Dimensions
Height (with feet)	465 mm / 18.31 in
Width	225 mm / 8.86 in
Depth	430 mm / 16.93 in
Weight	7.28 kg / 16.04 lb
Compatibility & Clearance
CPU Cooler Height	Up to 170 mm
GPU Length	Up to 410 mm
PSU Length	Up to 200 mm
Cable Management	Up to 28.7 mm
Top Radiator	Up to 240 mm (280 mm with low-profile memory)
Top Mounted Radiator & Fan Combined Thickness	Up to 55 mm
Front Ports
USB 3.2 Type-A	1
USB 3.2 Type-C	1
Headset Audio Jack	1
Expansion Slots
Standard	7
Vertical	0
Drive Bays
2.5"	2
3.5"	1

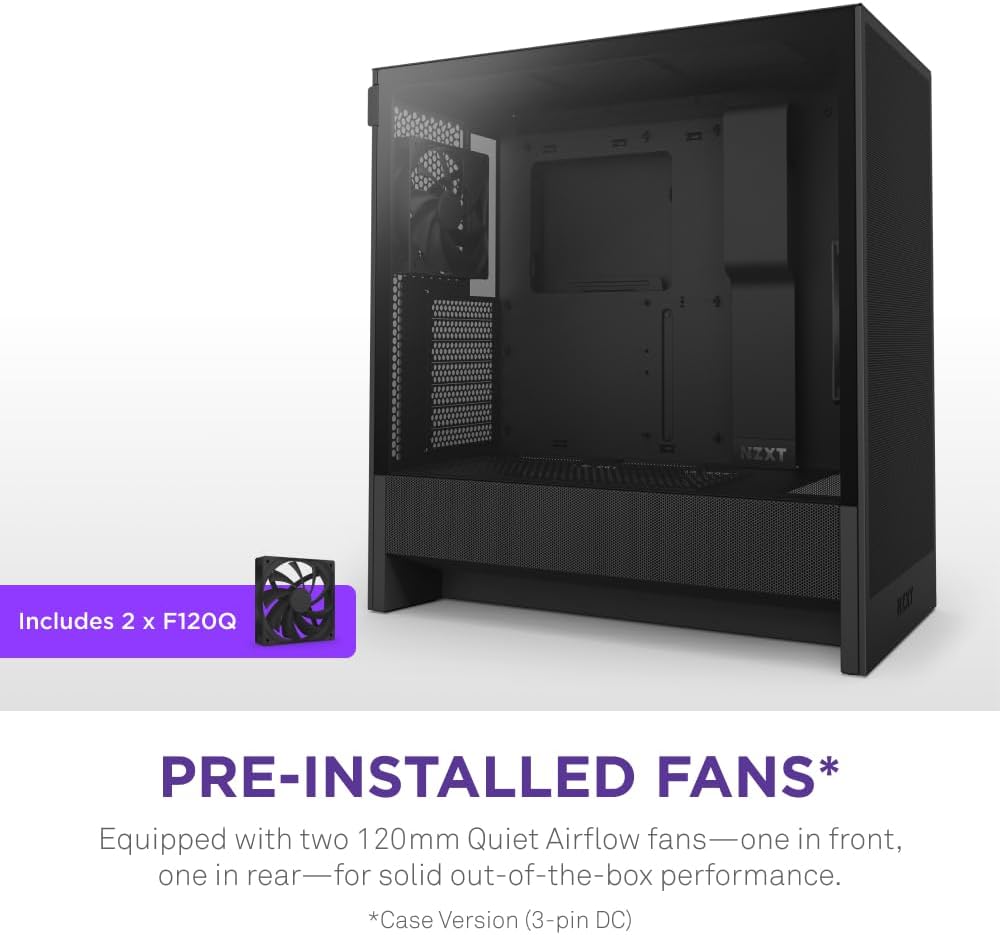

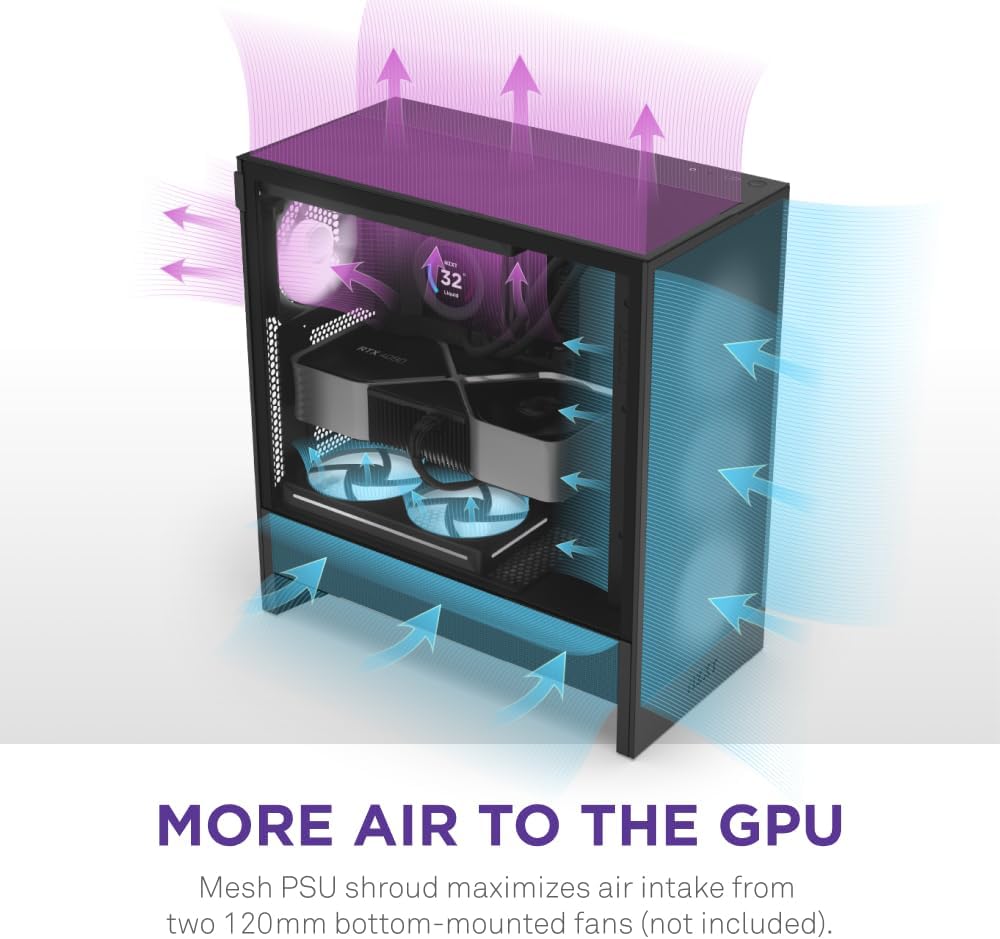

Fan Support
Front	3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
Top	2 x 120 mm / 2 x 140 mm
Bottom	2 x 120 mm
Rear	1 x 120 mm (1 x F120Q Case Version included)

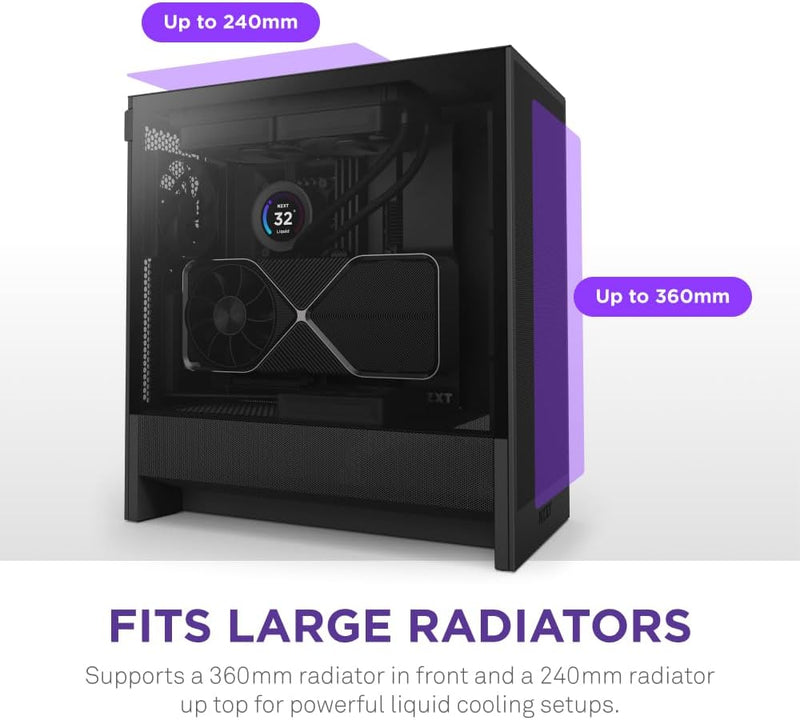

Radiator Support
Front	Up to 360 mm
Top	Up to 240 mm (280 mm with low-profile memory only)
Fan Specs
Model	F120Q (Case Version)
Speed	1,350 ± 150 RPM
Airflow	60.2 CFM
Static	1.05 mm-H₂O
Noise	24.1 dBA
Fan Connector	3-pin
