Phanteks NV5 MK2: Panoramic view now with Back Connect

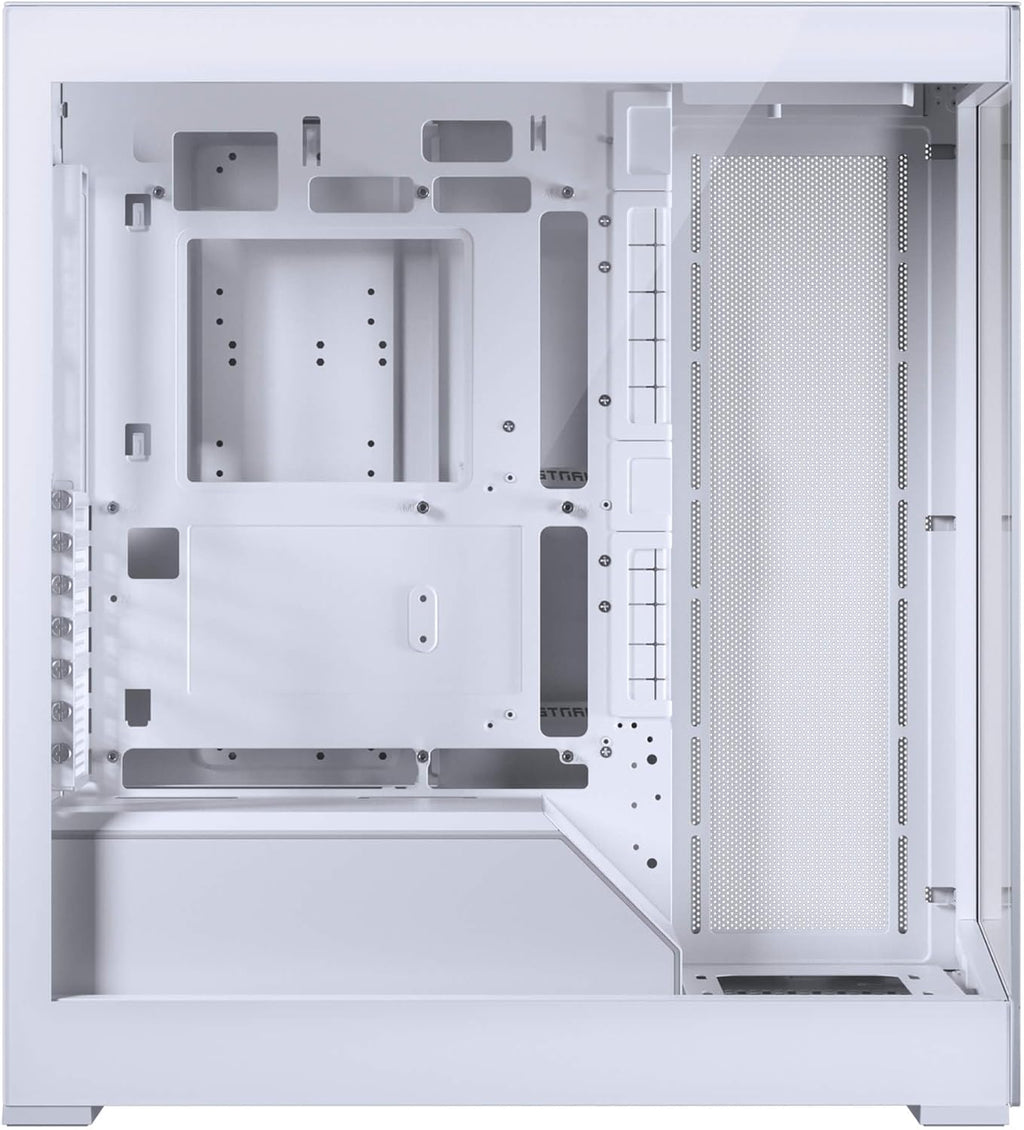

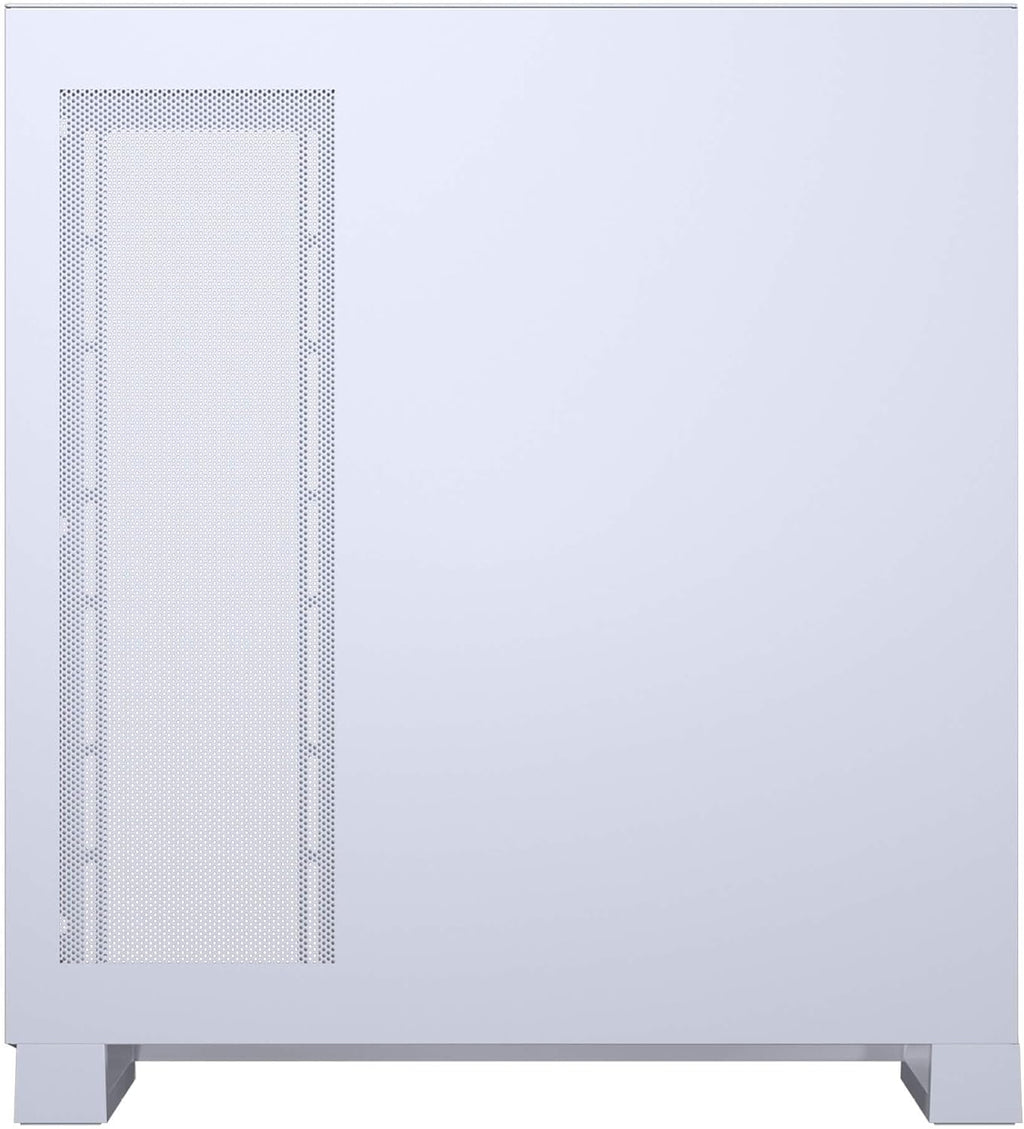

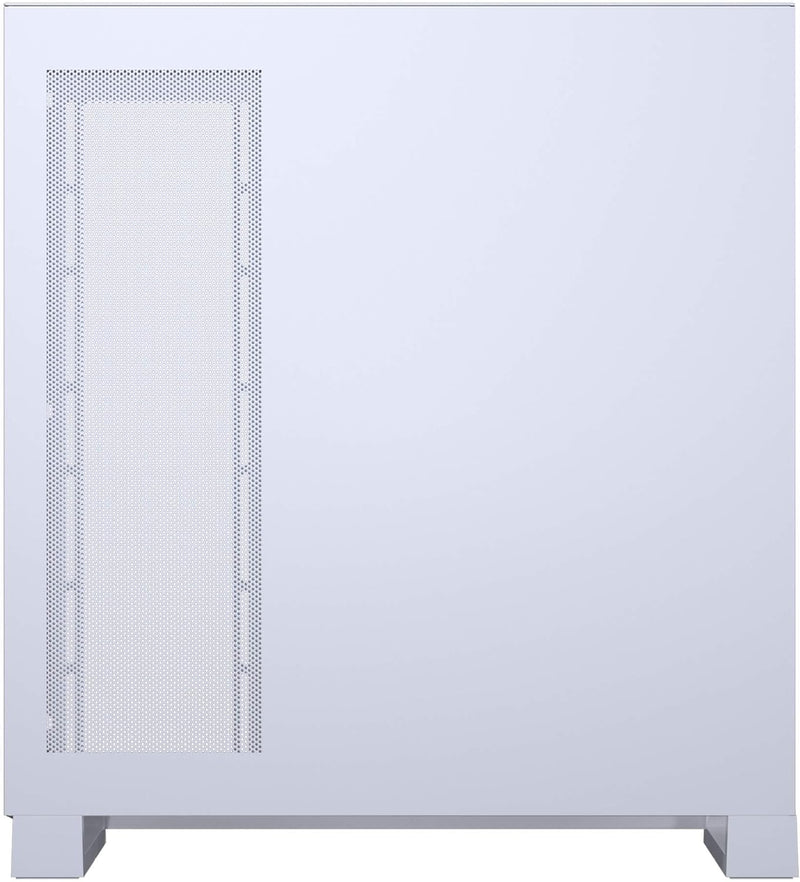

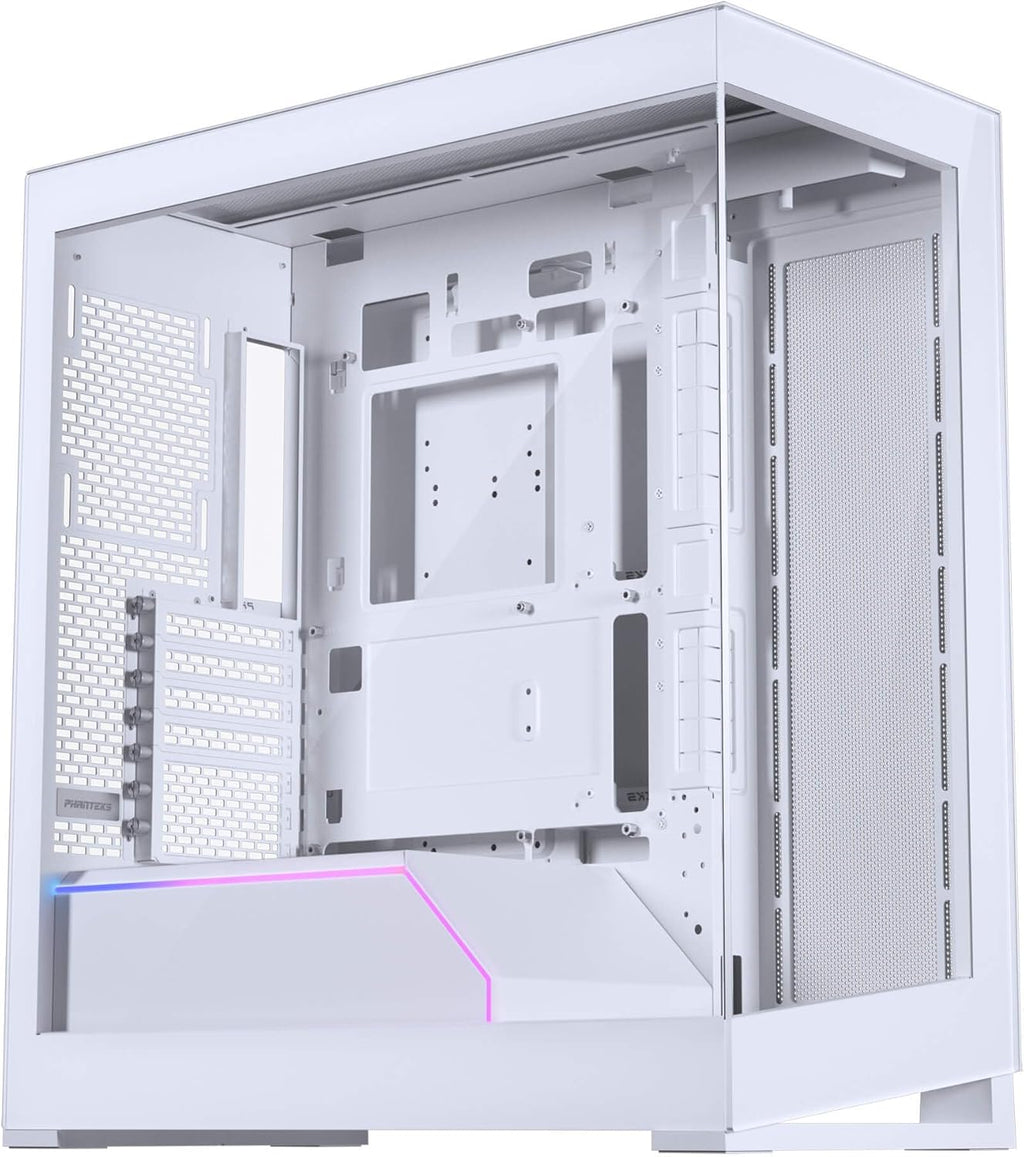

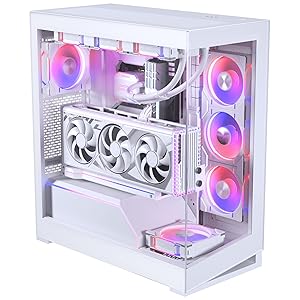

With the Phanteks NV5 MK2, you don't compromise on cooling and presenting your hardware. The left side panel and seamless integrated front are made of tempered glass and offer an excellent panoramic view of your components. The top and the right side panel with fine mesh ensure optimal airflow.
The subtle DRGB lighting enhances the look of the case and further highlights your hardware.
|
|
|
|
|
|---|---|---|---|

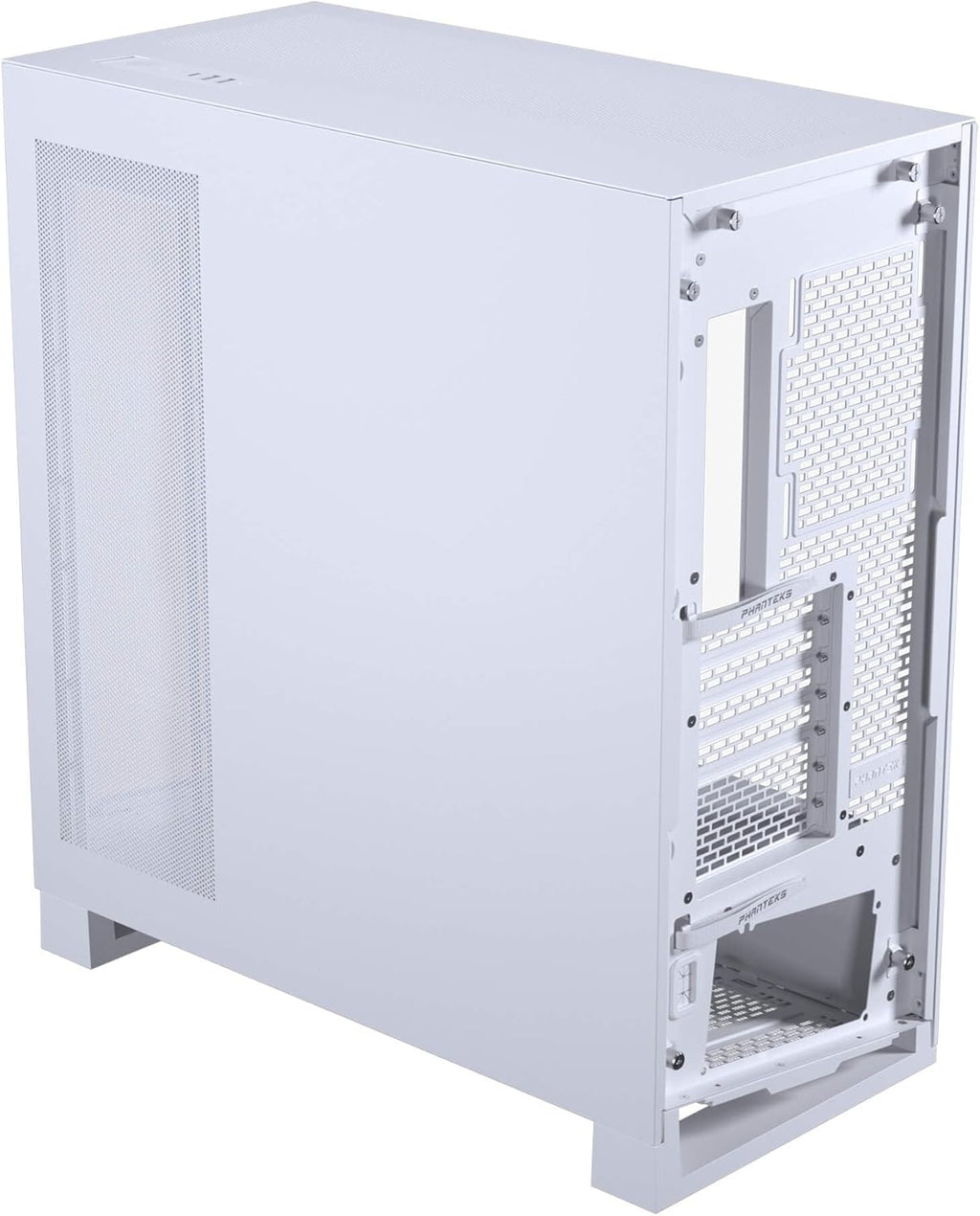

Optimal airflowPhanteks has focused on optimal cooling when developing the NV series, especially the NV5 MK2. The open design and mesh top as well as the right side panel allow for trouble-free airflow. The bevelled case back with a distance of 34 mm from the ground ensures sufficient fresh air flow. |

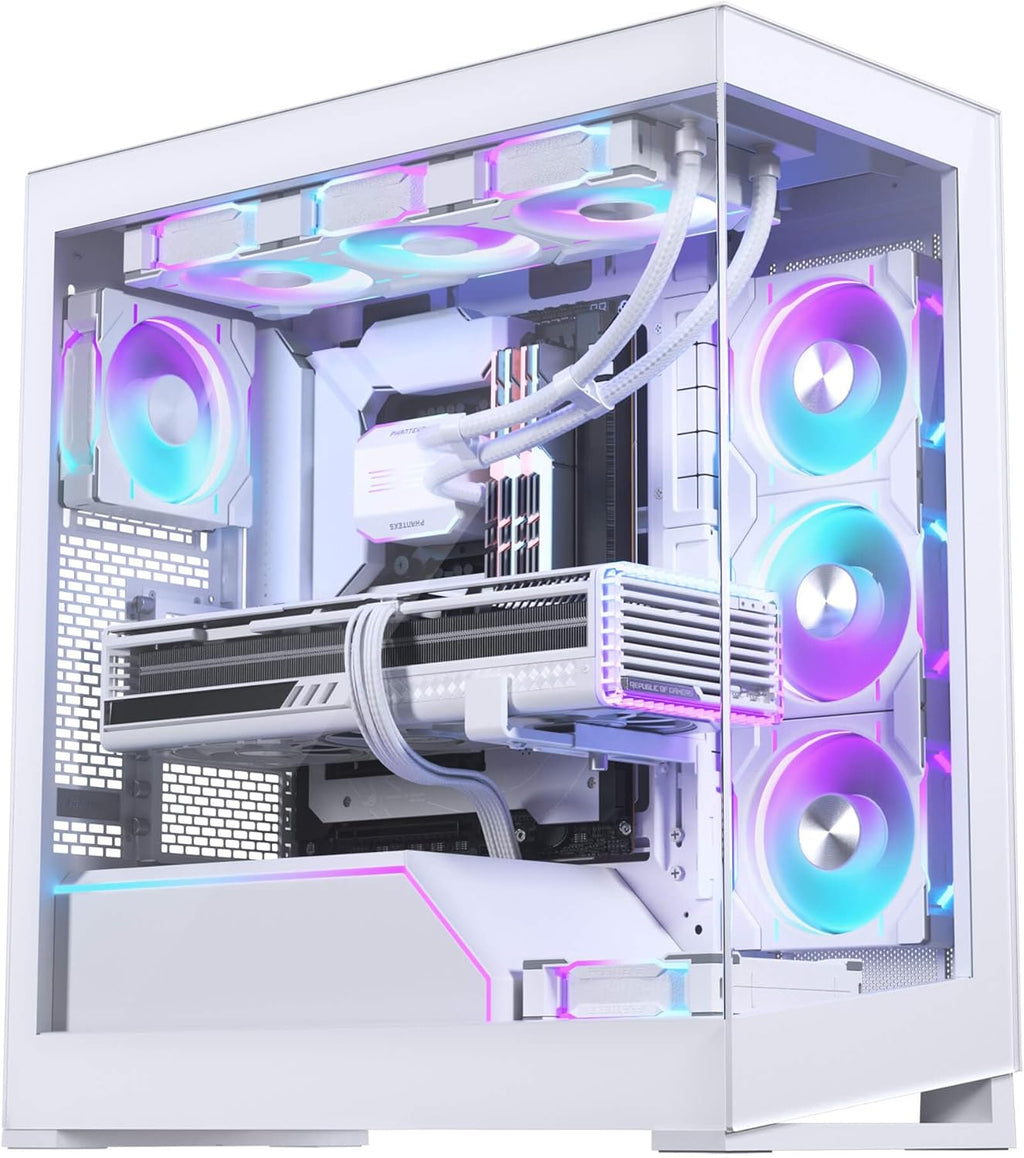

Excellent coolingThe Phanteks NV5 MK2 offers versatile cooling options with room for up to eight 120mm fans: three on the top, three on the side, one on the rear and one on the bottom. The case also supports the installation of two 360mm radiators on the ceiling and side, as well as a 120mm radiator on the back. |
Plenty of spaceThe Phanteks NV5 MKII is ideal for installing large motherboards, including E-ATX, and supports graphics cards up to 440mm long and 170mm wide, and CPU coolers up to 180mm high. For modern GPUs and 12VHPWR cables, the chassis is wider and includes a GPU mount for added stability. |
Many possibilitiesIn addition, it can accommodate up to four 2.5" SSDs that can be mounted on the back of the motherboard tray and in the PSU cover, as well as three 3.5" HDDs that can be housed in a removable cage at the bottom of the case. The modular design makes installation easier and ensures a tidy interior. |
Durable construction and well-equipped I/O panel

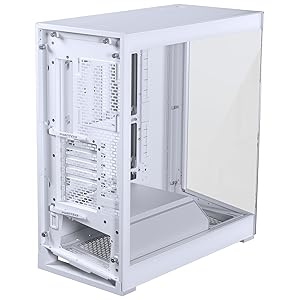

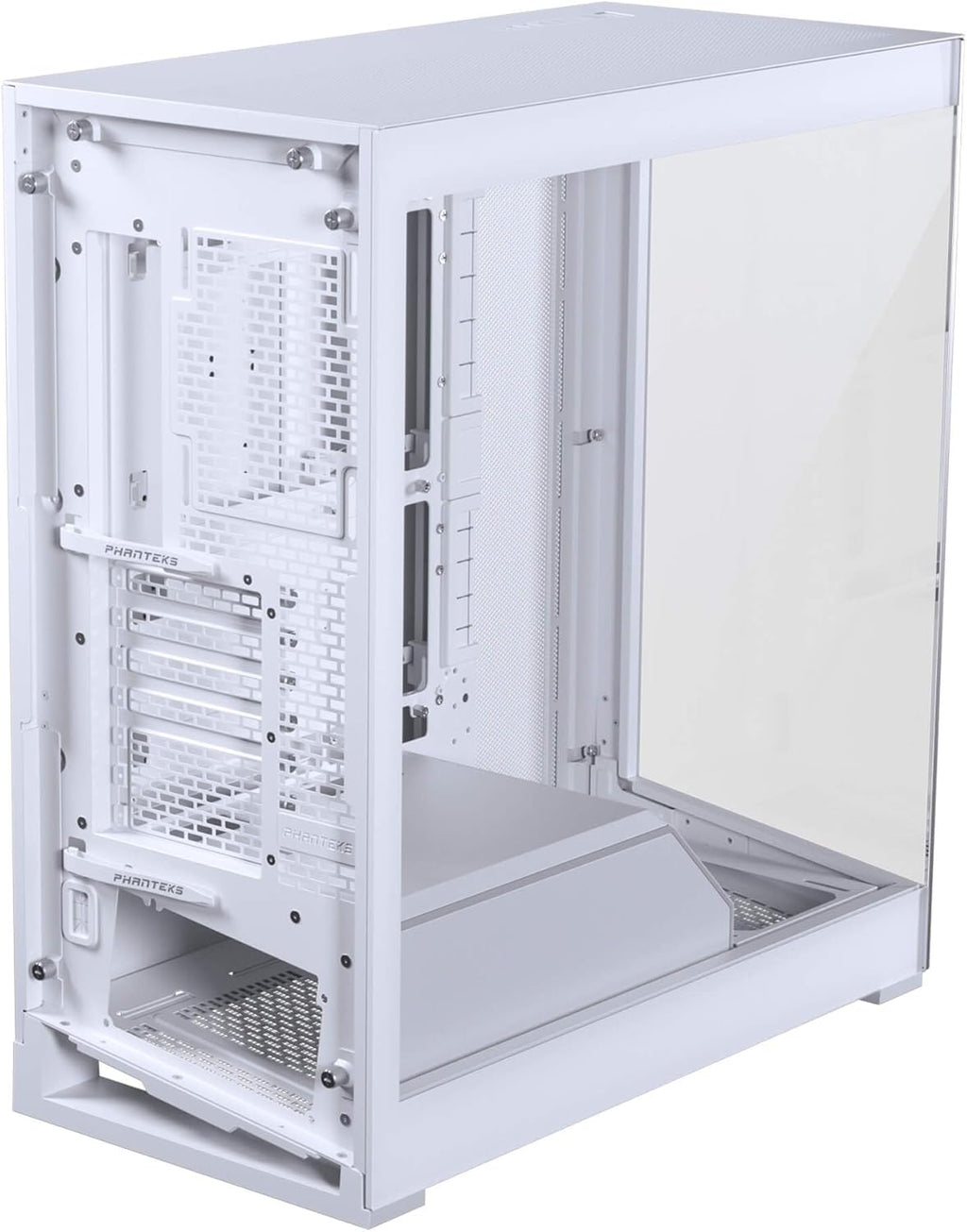

In addition to the tempered glass panes, the PC case impresses with its construction made entirely of robust steel. The seamless glass panels not only offer an elegant look, but also a clear view of the installed components. The I/O panel features power button, HD audio and microphone port, plus a USB 3.2 Type-C port and two USB 3.0 Type-A ports for faster data transfer. There are also two buttons to control DRGB lighting, one for mode, the other for colour.
Intelligent cable management

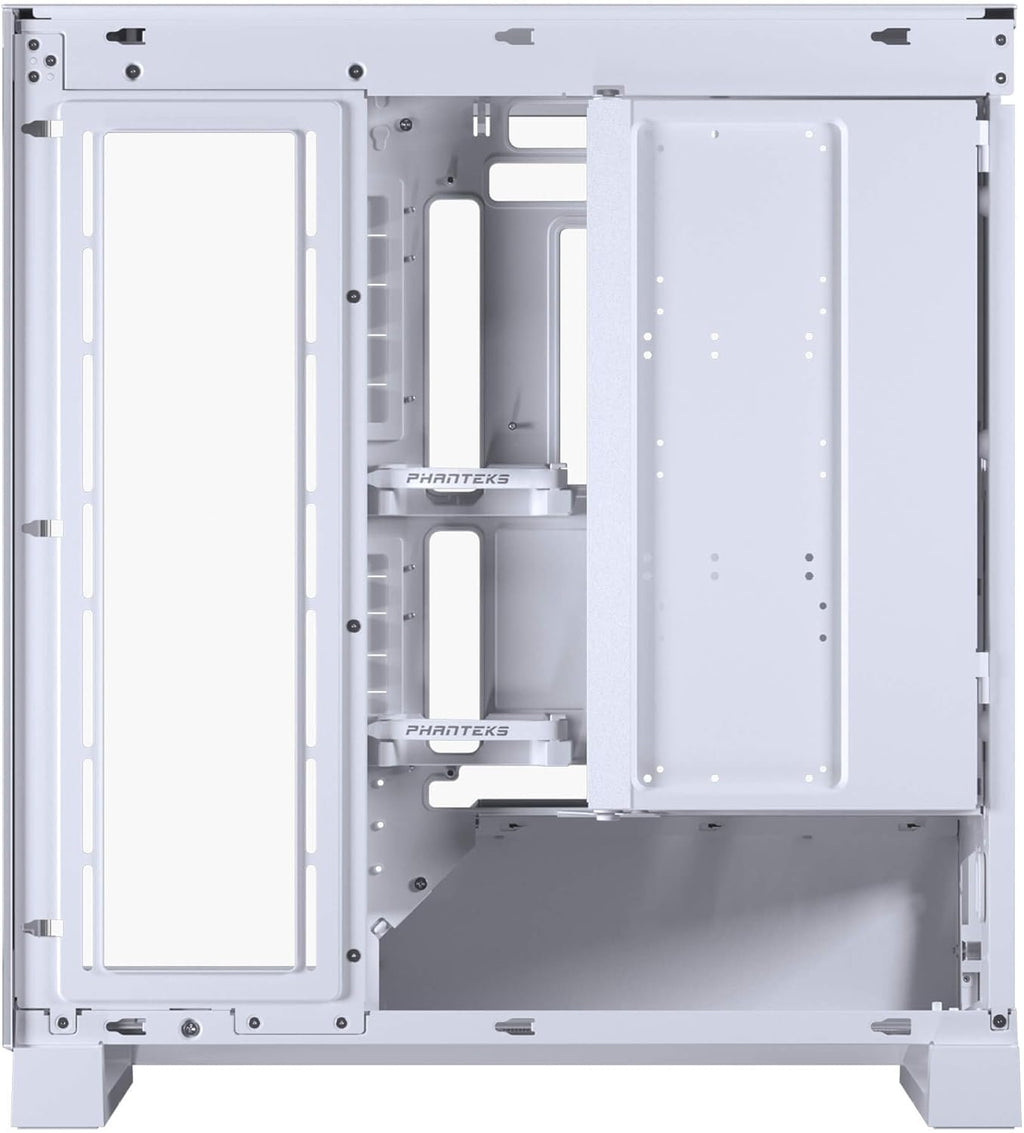

The Phanteks NV5 MK2 offers a sophisticated cable management system that ensures a tidy and tidy look. The PSU cover of the case is particularly practical, which can be opened and thus allows easy handling of the cables. The case also supports back-connect motherboards.
Back-connect motherboards such as MSI Project Zero motherboards or ASUS BTF motherboards have ports for power, data cables and other connections arranged on the back of the motherboard, so you not only have cleaner cable management in your case, but also better ventilation.
