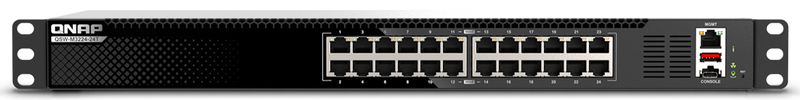

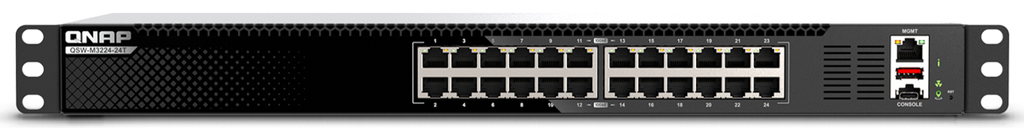

QNAP QSW-M3224-24T 24-Port 10GbE Network Switch
QNAP QSW-M3224-24T 24-Port 10GbE Network Switch
QNAP QSW-M3224-24T 24-Port 10GbE Network Switch
在圖片上滾動放大 點擊圖片以放大
QNAP QSW-M3224-24T 24-Port 10GbE Network Switch
QNAP QSW-M3224-24T 24-Port 10GbE Network Switch
QNAP QSW-M3224-24T 24-Port 10GbE Network Switch

QNAP QSW-M3224-24T 24-Port 10GbE Network Switch

QNAP
價格:
HK$11,999.00 HK$12,999.00

描述



  1. Management Type L3 Lite Web Managed
    Number of Ports 24
    10GbE BASE-T (RJ45) 24 (10G/5G/2.5G/1G/100M)
    Management Port 1 x 1GbE RJ45
    Power Supply Description Internal Power supply Unit
    Max. Power Consumption 116.9W
    Input Power Type AC
    Input Voltage Range 100-240VAC, 50/60Hz
    MAC Address Table 32k
    Total Non-Blocking Throughput 240Gbps
    Switching Capacity 480Gbps
    Management Interface Web
    Console USB Type C
    Fan PWM VAPO Bearing fan x 5
    Supported Standards IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-T
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3bz 2.5G/5GBase-T
    IEEE 802.3an 10GBASE-T
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.1Q VLAN Tagging
    IEEE 802.1w RSTP
    IEEE 802.3ad LACP
    IEEE 802.1AB LLDP
    IEEE 802.1p Class of Service
    Form Factor Rackmount
    LED Indicators Per Port: Speed/Link/Activity
    Per System: Status/Fan/Locator
    Buttons Reset button
    Dimensions (HxWxD) 44.2 x 438.5 x 190 mm
    Weight (Net) 2.93 kg
    Weight (Gross) 4.5 kg
    Operating Temperature 0˚C to 40°C (32°F to 104°F)
    Relative Humidity 5~95% Non-condensing
    Certifications CE, FCC, VCCI, BSMI
    Electromagnetic Compliance CLASS A
    Jumbo Frames 9K
    Warranty 2 Years
    Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
    Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
    QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
    The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
    Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
    Designs and specifications are subject to change without notice.
