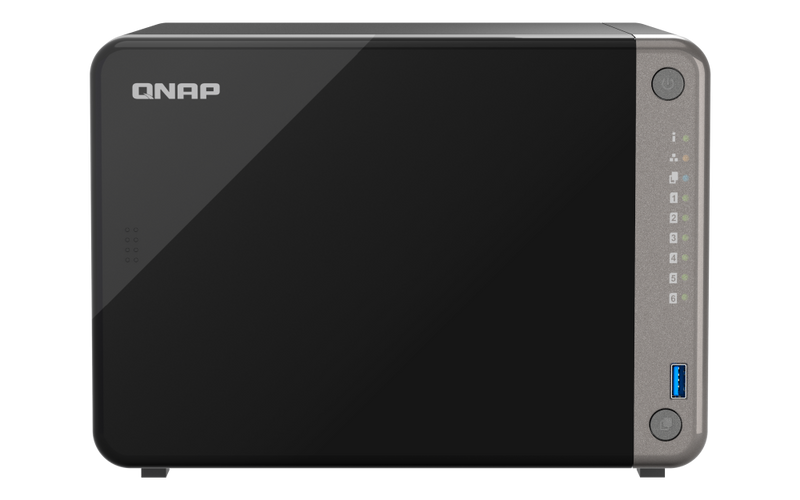

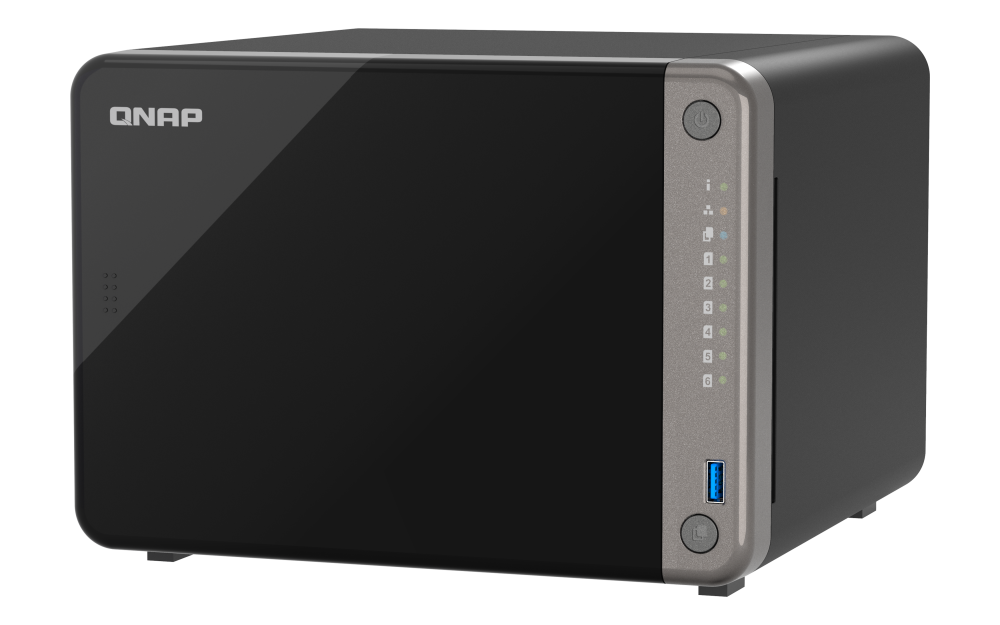

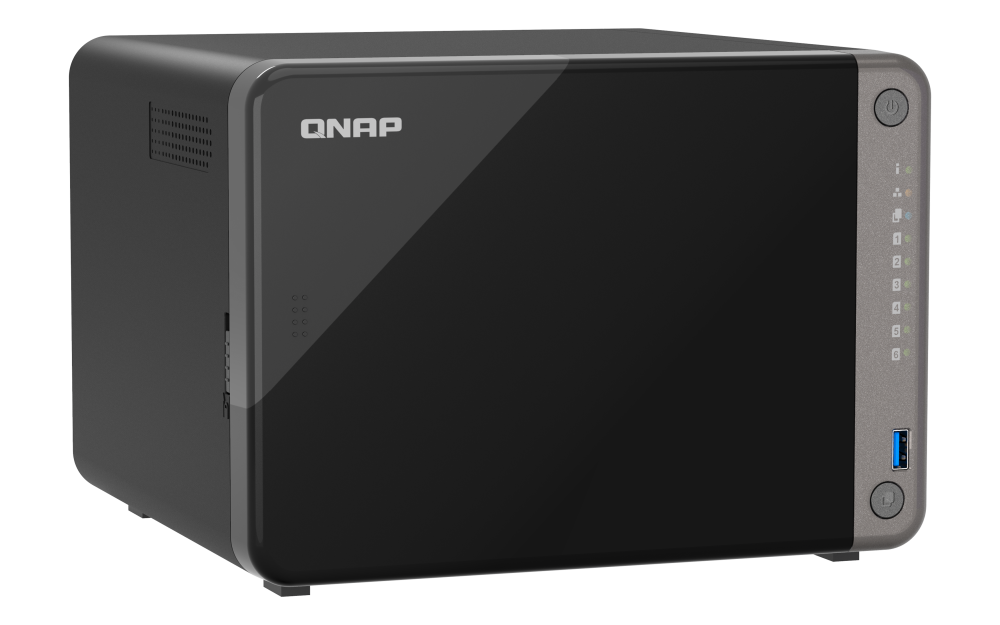

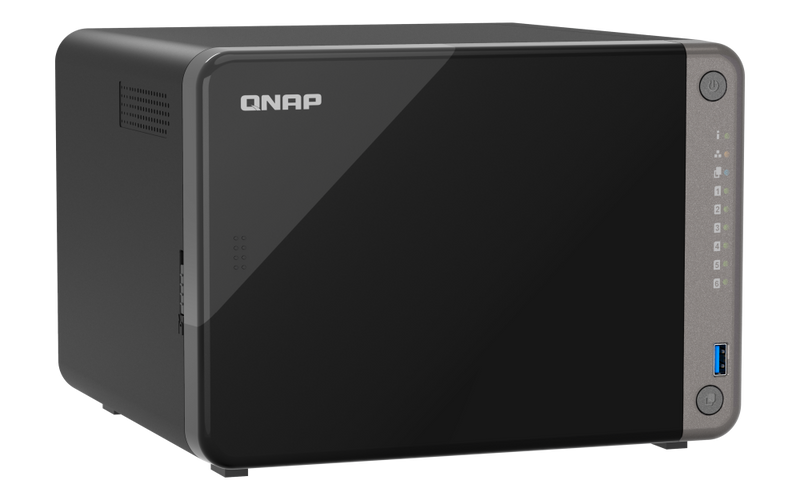

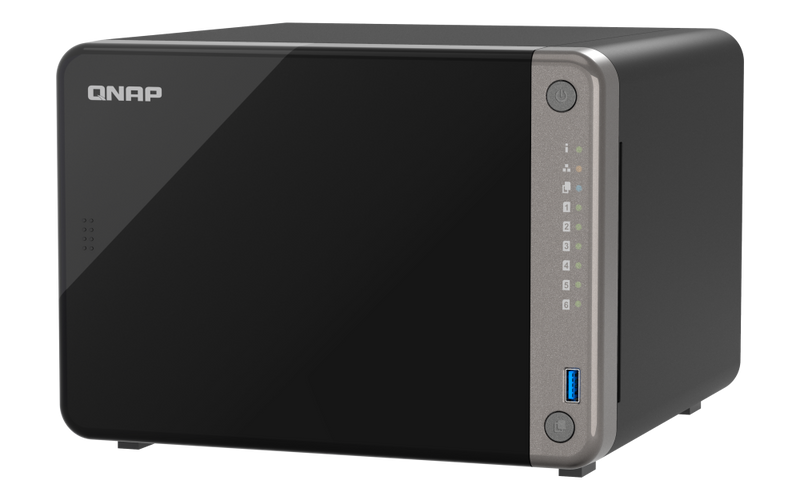

QNAP TS-AI642
The next-generation TS-AI642 AI NAS is specifically designed for AI-powered video and image recognition applications. Adopting the 64-bit ARM Cortex-A76/-A55 SoC octa-core processor with up to 6 TOPS NPU (Neural network Processing Unit), the TS-AI642 not only tackles image processing and analysis tasks, but also offloads CPU workloads when running AI applications to reduce system operation power consumption. With powerful computing performance, high-capacity storage space and flexible I/O expandability, the TS-AI642 allows enterprises to easily deploy an AI NAS solution for video surveillance, image recognition, and face recognition applications.
-
AI computing performance of 6 TOPS NPU
With a built-in NPU (Neural network Processing Unit) processor, the TS-AI642 boosts performance for high-speed face and object recognition.
-
2.5GbE is a must!
2.5GbE provides higher transmission speeds with existing Cat 5e cables, making file backup/restore and media conversion smoother.
-
PCIe Gen 3 Expandability
Install a 2.5/5/10GbE adapter, QM2 card, or USB 3.2 Gen 2 (10Gbps) card to increase application potential.
-
Professional surveillance NAS solution
QVR Elite allows you to deploy up to 64 channels (2 channels are included for free).
-
Dual 4K HDMI™ Output
Use two screens for a surveillance TV wall monitoring.
-
ARM hardware transcoding
Supports ARM NEON technology that accelerates video processing for a better media experience.
Available Models
-
TS-AI642-8G
8-core ARM Cortex 64-bit Processor ( 4-core Cortex-A76 2.2 GHz + 4-core Cortex-A55 1.8 GHz ), 8 GB on board (non-expandable)

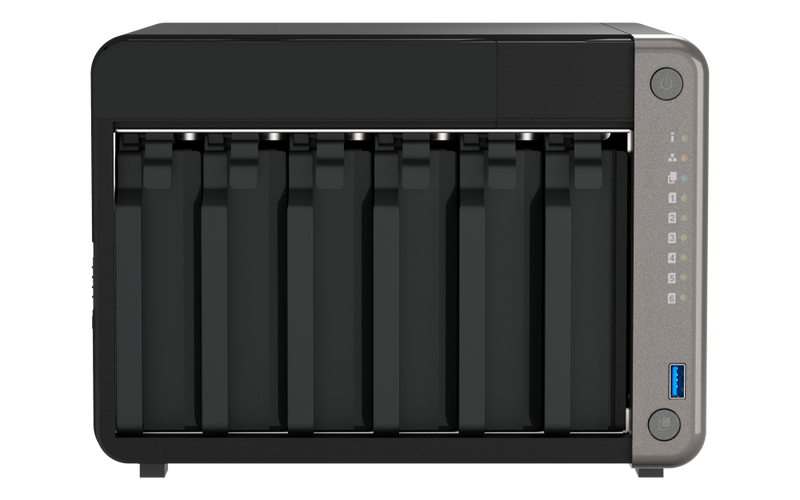

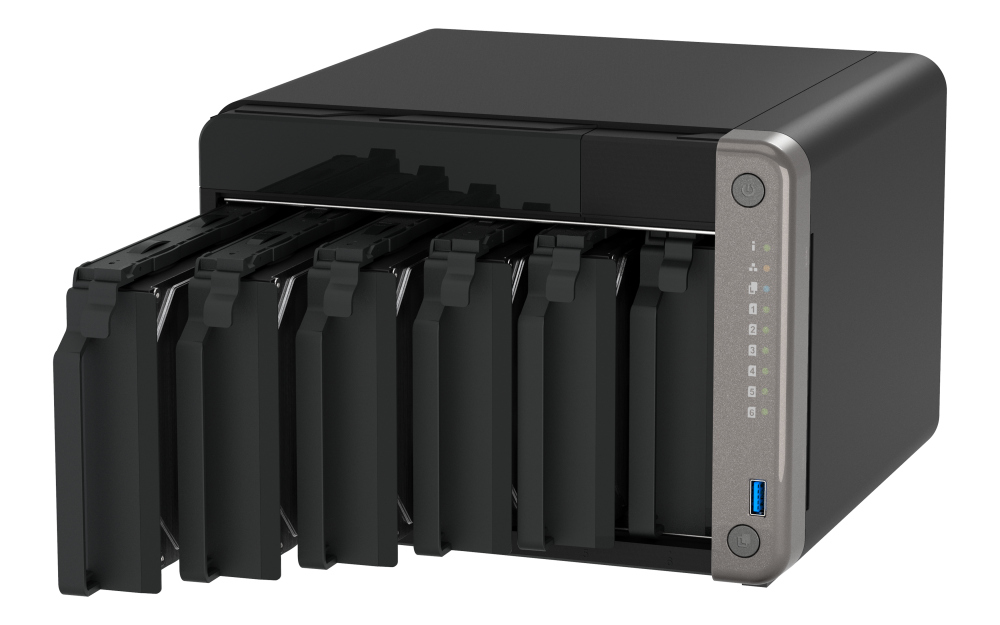

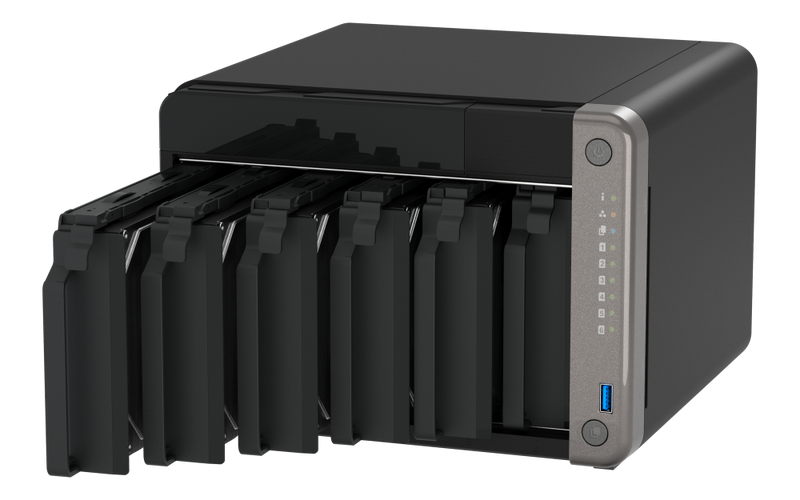

Expand storage capacity up to 18 hard drives
The TS-AI642 supports a storage capacity of up to 110 TB by installing six 3.5-inch 22 TB hard drives in RAID 5. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional twelve hard drives to the TS-AI642 to achieve up to 350TB storage space to meet growing storage requirements. Or connect TR Series storage expansion units to add Hardware RAID protection for expanded storage.
1. Install six 3.5-inch 22 TB hard drives in RAID 5 on TS-AI642 and six 3.5-inch 22 TB hard drives in RAID 5 on TL-D1600S.
2. The storage expansion unit can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the storage expansion unit.
NPU accelerates on-device AI performance. 3x Faster face recognition.
Adopting an NPU (Neural network Processing Unit), the TS-AI642 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.
-
QuMagie photo management
NPU greatly accelerates image recognition performance when uploading pictures in QuMagie, realizing intelligent classification.
200% performance boost in image recognition*
-
Qsirch full-text search engine
NPU accelerates AI OCR image recognition technology to make capturing text in images more efficient.
20% performance boost capturing text from images with AI OCR*
-
QVR Face Insight facial recognition
QVR Face instantly recognizes faces and runs analytic tasks within 0.2 seconds. NPU allows more IP cameras to be analyzed at the same time.
Learn More: QVR Face
10 cameras for real-time attendance management analytics
-
QVR Human people counting solution
QVR Human provides real-time counting data and analytics, and NPU allows more IP cameras to be analyzed at the same time.
Learn More: QVR Human
3 cameras for real-time analytics
Note: By comparing with the same-grade 6-bay NAS.
Efficient image search with AI photo management
TS-AI642 is the best photo and file storage center. Store and organize thousands of photos and find them anytime you want with powerful AI image recognition.
-
QuMagie smart photo management
By auto-organizing thousands of photos by People, Things, or Places, QuMagie creates AI albums for smarter filtering and faster searching.
-
Qsirch fast file search
As powerful as Google™, Qsirch allows you to find files faster and smarter by using keywords, color, and metadata. AI OCR image recognition technology recognizes and captures text inside images.
Smart surveillance
The TS-AI642 provides a professional surveillance NAS solution, compatible with 6,000+ IP cameras of 190+ brands and thousands of ONVIF network cameras. Full HD (1080p) surveillance video recordings of 2 cameras can be stored for 2 years.
1. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
2. Continuous recording parameters: Full HD (1080p), 30 FPS, Medium Quality, H.264.
Next-generation 2.5G NAS with power-efficient ARM SoC 8-core processor
The TS-AI642 adopts the ARM Cortex 64-bit-A76/A55 SoC octa-core processor with ARM Mali-G610 MC4 GPU, offering excellent computing performance at a low power comsumption. TS-AI642 has one 2.5GbE port and one PCIe slot for upgrading to 10GbE connectivity. SATA 6Gb/s drives are supported to deliver reliable read/write performance for hosting versatile NAS applications in offices.
|
Windows File Transfer (1x 2.5GbE) 10 Gigabytes file transfer |
Windows Download
294 MB/s
|
Windows Upload
293 MB/s
|
|---|---|---|
|
Windows File Transfer (2x 1GbE) 10 Gigabytes file transfer |
Windows Download
236 MB/s
|
Windows Upload
236 MB/s
|
| SMB Sequential Throughput (1 x 10GbE) |
Windows Download
1156 MB/s
|
Windows Upload
1180 MB/s
|
| SMB Sequential Throughput (2 x 10GbE) |
Windows Download
1509 MB/s
|
Windows Upload
1501 MB/s
|
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS : TS-AI642 with QXG-10G1T or QXG-10G2TB
OS : QTS 5.0.1
Volume type : 6 x Samsung 860 EVO 1TB, RAID 5
Client PC : Windows Server 2019 Standard, AMD EPYC 7232P 3.0GHz, DDR4 64GB, with LAN-10G2T-X55
IOmeter : 16MB, 30-sec ramp up time, 3-min seq. run time, 16 workers, 4-outstanding

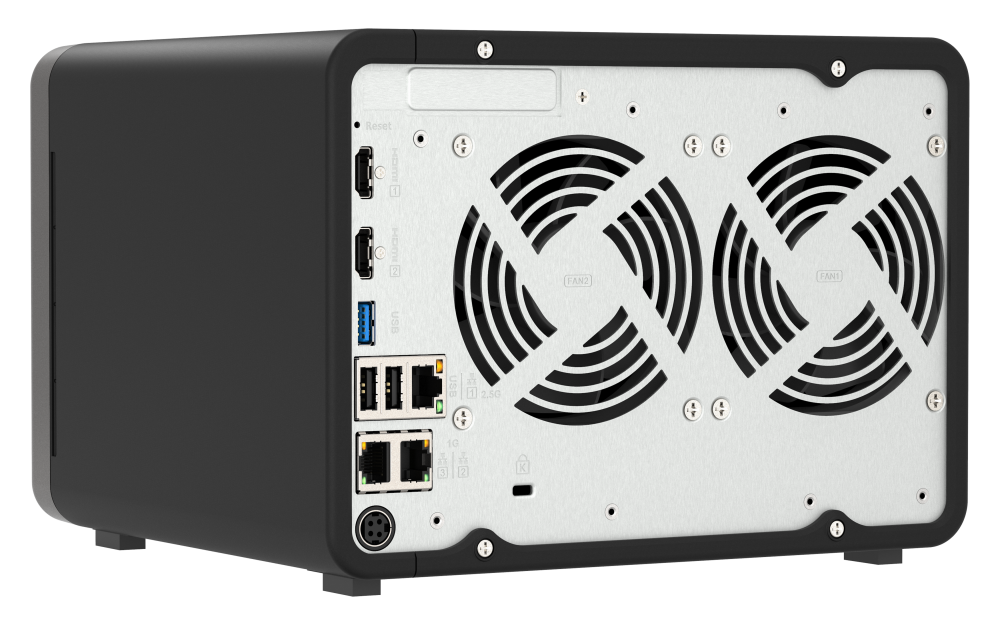

Abundant I/O capabilities with PCIe expansion
The TS-AI642 has one PCIe Gen 3 x2 slot, allowing you to increase its application potential.
-
2.5/5/10GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).
Learn More: 10GbE network solution, 2.5GbE network solution, QNAP network expansion cards
-
QM2 card
Add M.2 SSD caching, Edge TPU or 2.5GbE/10GbE network connectivity to the TS-AI642 for optimized performance and bandwidth.
Learn More: QM2 card
-
SATA storage expansion cards
Designed for connecting a NAS to SATA 6Gb/s expansion units to attain up to petabyte-scale storage capacity.
Learn More: QNAP storage expansion cards, Compatible expansion enclosures
Simple Backup
Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.
Multi-version snapshots mitigate ransomware threats
The TS-AI642 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-AI642 integrates Docker® lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub®, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.
Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-AI642.
Learn More: Container Station, QTS App Center
Comprehensive security and privilege settings
The TS-AI642 is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
-
myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-AI642 through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
Learn More: myQNAPcloud service
-
Simplified privilege settings
The TS-AI642 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
-
QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
Learn More: QuFirewall
-
Superior security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-AI642 as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.
Learn More: QVPN
-
Security Counselor
A security portal for the TS-AI642 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Learn More: Security Counselor
-
Malware Remover
Regularly scan your TS-AI642 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
Learn More: Malware Remover
The best file storage and collaboration center
The TS-AI642 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.
Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-AI642 storage as needed to accommodate data and business growth.
-
Attach QNAP expansion enclosures
Connect expansion enclosures to the TS-AI642, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
-
Mount cloud storage or remote file servers
Mount cloud storage or remote file servers to expand the capacity of the TS-AI642 while also centrally managing files on the NAS, cloud storage, and remote devices.
-
Migrate to a new NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
-
Upgrade RAID capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
More productivity-boosting applications
The TS-AI642 provides an App Center that includes feature-rich apps to expand your NAS potential!
-
Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
-
QmailAgent
The best email backup solution that allows you to easily backup/recover and manage multiple email accounts in their native format with strong security and data integrity.
-
QuFTP
The TS-AI642 can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
