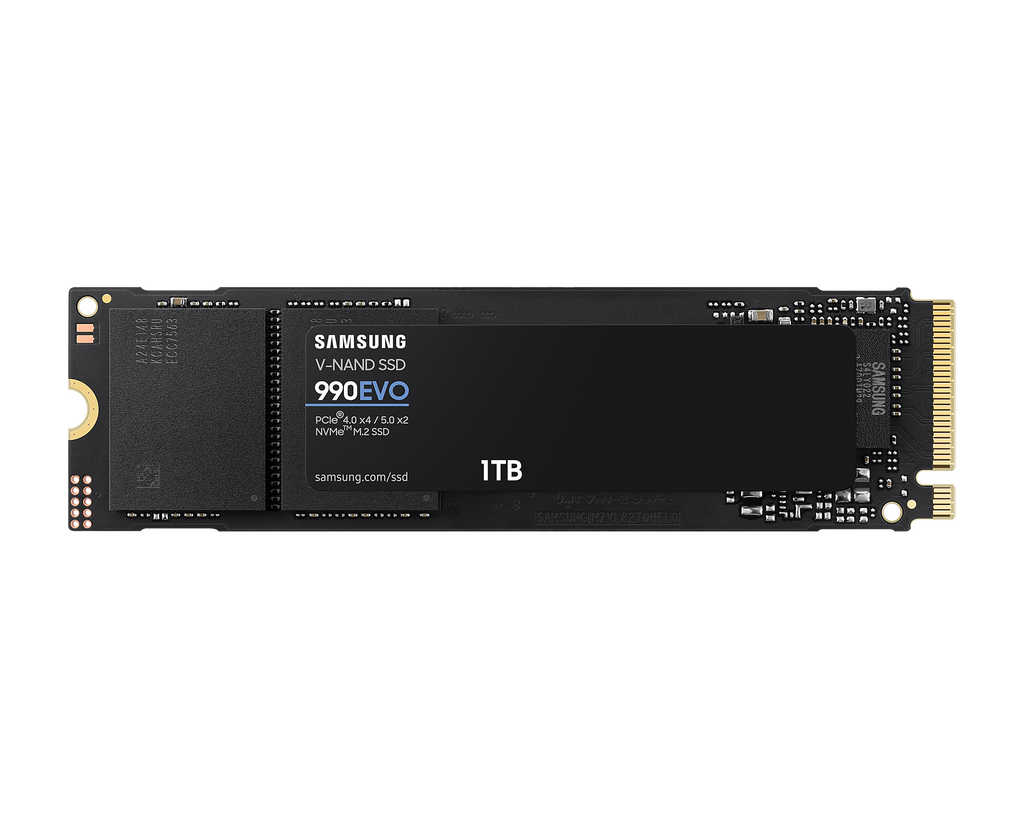

Samsung 1TB 990 EVO MZ-V9E1T0BW M.2 2280 PCIe 4.0 x4 / 5.0 x2 NVMe 2.0 SSD

Model Code (Capacity)¹⁾

• MZ-V9E1T0BW

General Feature

• APPLICATION

  Client PCs

• FORM FACTOR

  M.2 (2280)

• INTERFACE

  PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0

• DIMENSION (WxHxD)

  80 x 22 x 2.38mm

• WEIGHT

  Max 9.0g Weight

• STORAGE MEMORY

  Samsung V-NAND TLC

• CONTROLLER

  Samsung in-house Controller

• CACHE MEMORY

  HMB(Host Memory Buffer)

Special Feature

• TRIM SUPPORT

  Supported

• S.M.A.R.T SUPPORT

  Supported

• GC (GARBAGE COLLECTION)

  Auto Garbage Collection Algorithm

• ENCRYPTION SUPPORT

  AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive)

• WWN SUPPORT

  Not supported

• DEVICE SLEEP MODE SUPPORT

  Yes

Performance²⁾

• SEQUENTIAL READ

  1TB: Up to 5,000 MB/s


• SEQUENTIAL WRITE

  1TB: Up to 4,200 MB/s


• RANDOM READ (4KB, QD32)

  1TB: Up to 680,000 IOPS


• RANDOM WRITE (4KB, QD32)

  1TB: Up to 800,000 IOPS


• RANDOM READ (4KB, QD1)

  1TB: Up to 20,000 IOPS


• RANDOM WRITE (4KB, QD1)

  1TB: Up to 90,000 IOPS


Environment

• AVERAGE POWER CONSUMPTION
  (SYSTEM LEVEL)³⁾

  1TB: Average: Read 4.9 W / Write 4.5 W


• POWER CONSUMPTION (IDLE)³⁾

  1TB: Typical 60 mW


• POWER CONSUMPTION (DEVICE SLEEP)

  1TB: Typical 5 mW


• ALLOWABLE VOLTAGE

  3.3 V ± 5 % Allowable voltage

• RELIABILITY (MTBF)

  1.5 Million Hours Reliability (MTBF)

• OPERATING TEMPERATURE

  0 - 70 ℃ Operating Temperature

• SHOCK

  1,500 G & 0.5 ms (Half sine)

Accessories

• INSTALLATION KIT

  Not Available

Software

• MANAGEMENT SW

  Magician Software for SSD management

Warranty⁴⁾

• MZ-V9E1T0BW (1TB)

  5-year or 600TBW limited warranty

• MZ-V9E2T0BW (2TB)

  5-year or 1200 TBW limited warranty
