描述
GPU

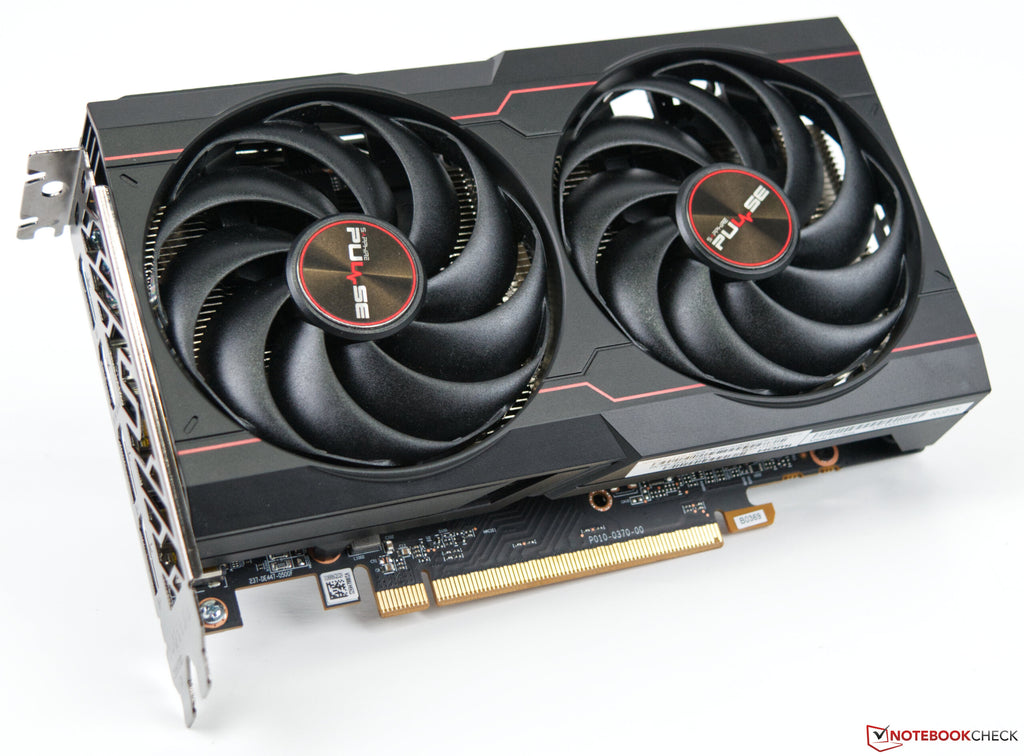

AMD Radeon™ RX 6600 Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2491 MHz
- Game Clock: Up to 2044 MHz
Stream Processors
1792
Infinity Cache
32MB
Ray Accelerators
28
Memory Size/Bus
8GB GDDR6
Memory Clock
14 Gbps Effective
Displays
Maximum 4 Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0 x8
Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- UEFI
Game Index
1080P
Sapphire Features
-
Premium Digital Power Design
-
Fuse Protection
-
Dual-X Cooling Technology
-
Intelligent Fan Control
-
Precision Fan Control
-
Metal Backplate
-
Two-Ball Bearing Fans
-
TriXX Supported
-
TriXX Boost
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- Smart Access Memory
- Infinity Cache
- 7nm GPU
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
Cooling
Dual Fans
Form Factor
2 slot, ATX
Dimension: 193(L)X 120.05(W)X 40.05(H)mm
Dimension: 193(L)X 120.05(W)X 40.05(H)mm
Power Consumption
- 140W (Board Power)
OS
Linux®, Windows® 7*, Windows® 10, and Windows 11 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 500 Watt Power Supply
- 1 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
