SAPPHIRE
價格:
HK$3,300.00

描述

AMD RDNA™ 3 Architecture

3 keyboard keycaps

3 enamel pins

"Frozen Punk 2" Deluxe Edition Game Serial Number

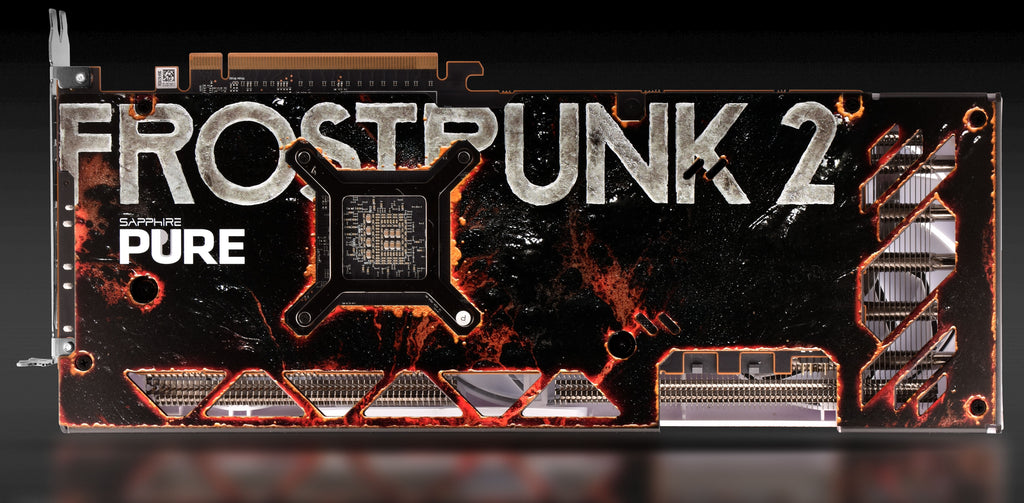

Metal back plate with Frostpunk 2 art design

The product adopts the theme packaging of "Frozen Punk 2"

ARGB SAPPHIRE logo

Frostpunk 2 Features

In keeping with the gaming theme, the SAPPHIRE graphics card features a frosty white fan housing and an oil-stained black metal backplate decorated with rust spots.

All aluminum metal back panel

The rigid all-aluminum backplate is used to ensure that the card body does not have any risk of bending and dust jam, and also helps to assist in rapid cooling by increasing heat dissipation.

Digital Power Design

SAPPHIRE PURE AMD Radeon™ RX 7000 Series features a digital power supply design that delivers precise power control and exceptional power efficiency

High TG Copper PCB

The GPU is mounted on a high-density 14-layer 2oz high TG and copper PCB to match the high speed, high current and increased power requirements of the GPU and memory to ensure high stability of the PCB during operation.

Optimized composite heat pipe

Composite heat pipes are optimized and fine-tuned for each individual cooling design to deliver optimal heat flow and effectively and evenly distribute heat throughout the cooling module.

Angled fan blade design

The angled fan blade design can provide double-layer downward wind pressure and work together with the air pressure of the outer ring of the axial flow fan to increase the downward wind pressure by 44% and the airflow by 19%. Compared with previous generations of products, it runs faster Quieter and cooler.

Fuse protection design

In order to protect your graphics card, SAPPHIRE graphics cards are equipped with a fuse protection mechanism to ensure the safe use of components.

Display card support bracket

Comes with graphics card bracket to secure graphics card to PCIe slot

ARGB SAPPHIRE logo

The ARGB logo comes in Frozenpunk 2’s signature orange, adding a fiery feel to the design – and can be easily adjusted or turned off to suit personal preference.

Two-Ball Bearing

In our testing, dual ball bearing fans lasted about 85% longer than sleeve bearings. The improved fan blades are also 10% quieter than the previous generation product.



Specifications

GPU

AMD Radeon™ RX 7700 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

  • Boost Clock: Up to 2584 MHz
  • Game Clock: Up to 2226MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3456

Compute Units

54 CU (with RT+AI Accelerators)

Infinity Cache

48MB

Ray Accelerators

54

Memory Size/Bus

12GB/192 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

  • HDMI™: 7680×4320
  • DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

BIOS Support

  • UEFI

Game Index

1440P

Frostpunk 2 Features

  • Metal Backplate with Frostpunk 2 Graphics
  • 3 Keyboard Keycaps
  • 3 Enamel Pins
  • Frostpunk 2 Deluxe Edition Game Code
  • Product package with Frostpunk 2 theme
  • ARGB SAPPHIRE Logo (set to Orange default colour)

Sapphire Features

  • Premium Digital Power Design
  • Ultra High Performance Conductive Polymer Aluminum Capacitors
  • Fuse Protection
  • Tri-X Cooling Technology
  • High TG Copper PCB
  • Optimized Composite Heatpipe
  • Intelligent Fan Control
  • Precision Fan Control
  • Metal Backplate
  • ARGB SAPPHIRE Logo
  • Two-Ball Bearing Fans
  • Angular Velocity Fan Blade
  • TriXX Supported
  • TriXX Boost

Accessories Bundled

White Graphics Card Supporter

AMD Features

  • DirectX 12 Ultimate Support
  • DisplayPort™ 2.1 Support
  • AMD Radiance Display™ Engine
  • AMD FidelityFX™ Super Resolution technology
  • Microsoft® DirectX® 12 Ultimate Support
  • Microsoft® DirectStorage Support
  • Vulkan® Optimized
  • AMD Smart Technologies
  • AMD Software: Adrenalin Edition™ technology
  • AMD Noise Suppression
  • AMD Privacy View
  • AMD Radeon™ Super Resolution technology
  • AMD FreeSync™ Technology

Cooler Type

3 Fans

Form Factor

2.5 slot, ATX
Dimension: 320(L)X 128.75(W)X 52.57 (H)mm

Power Consumption

240W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

  • Minimum 700 Watt Power Supply
  • 2 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
  • Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
  • Colors of PCB or other components may differ from those illustrated.
  • SAPPHIRE reserves the right to update or revise specifications without prior notice.
  • All trademarks and logos are acknowledged as the property of their respective holders.

*The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
