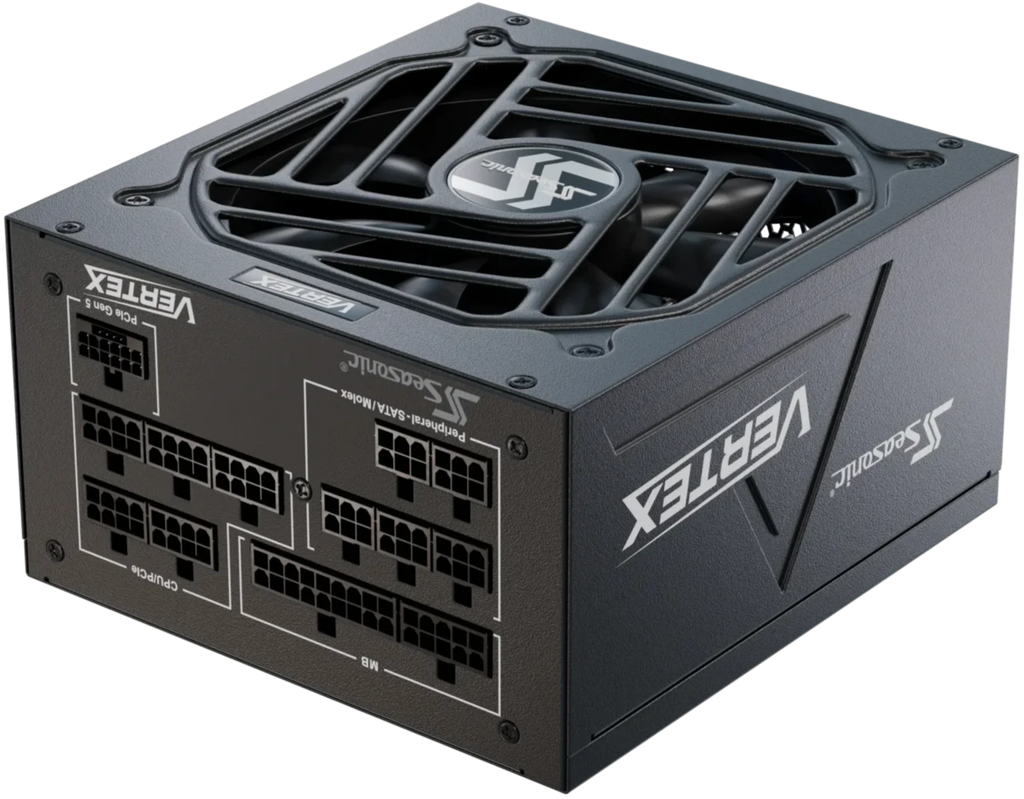

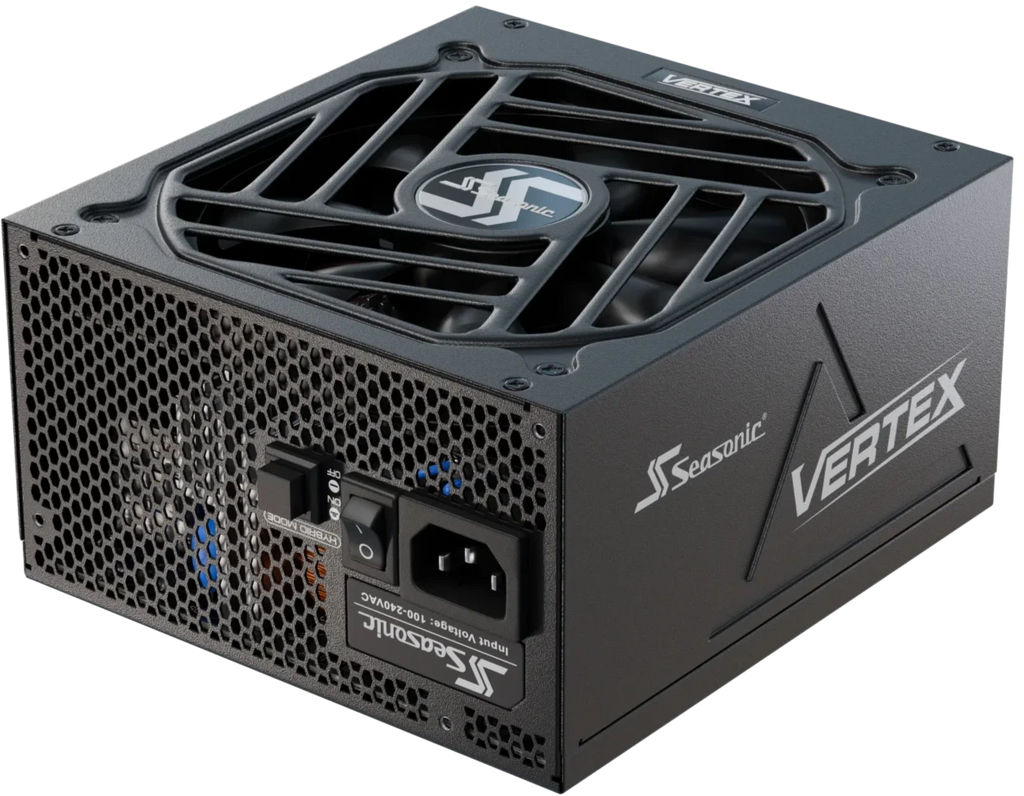

VERTEX GX
The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in Gold level of efficiency, with all the best features you can expect from a Seasonic power supply:
- Fully compatible with ATX 3.1 and PCIe 5.1 standards.

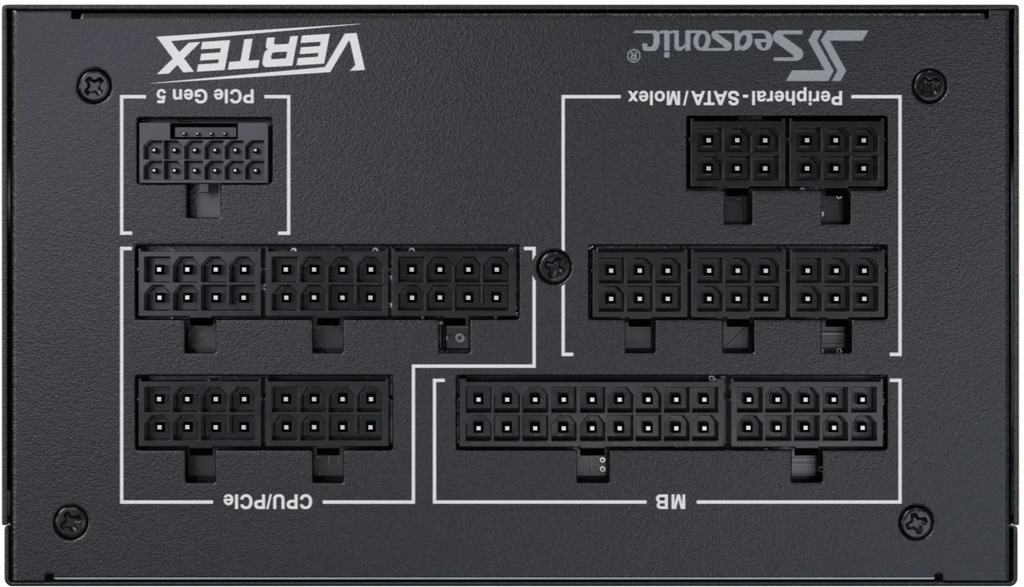

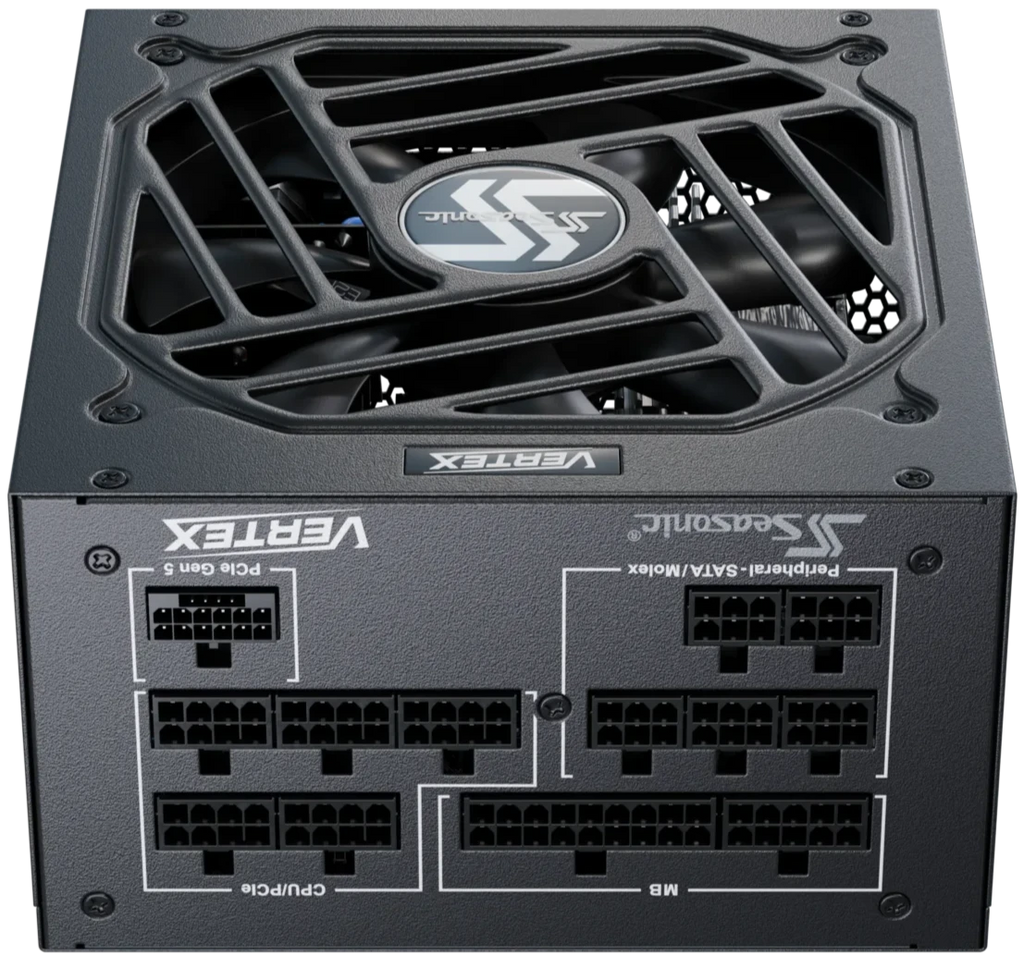

- Full modularity for the best cable management options.
- Added 12V-2×6 cable to comply with the new graphic cards.

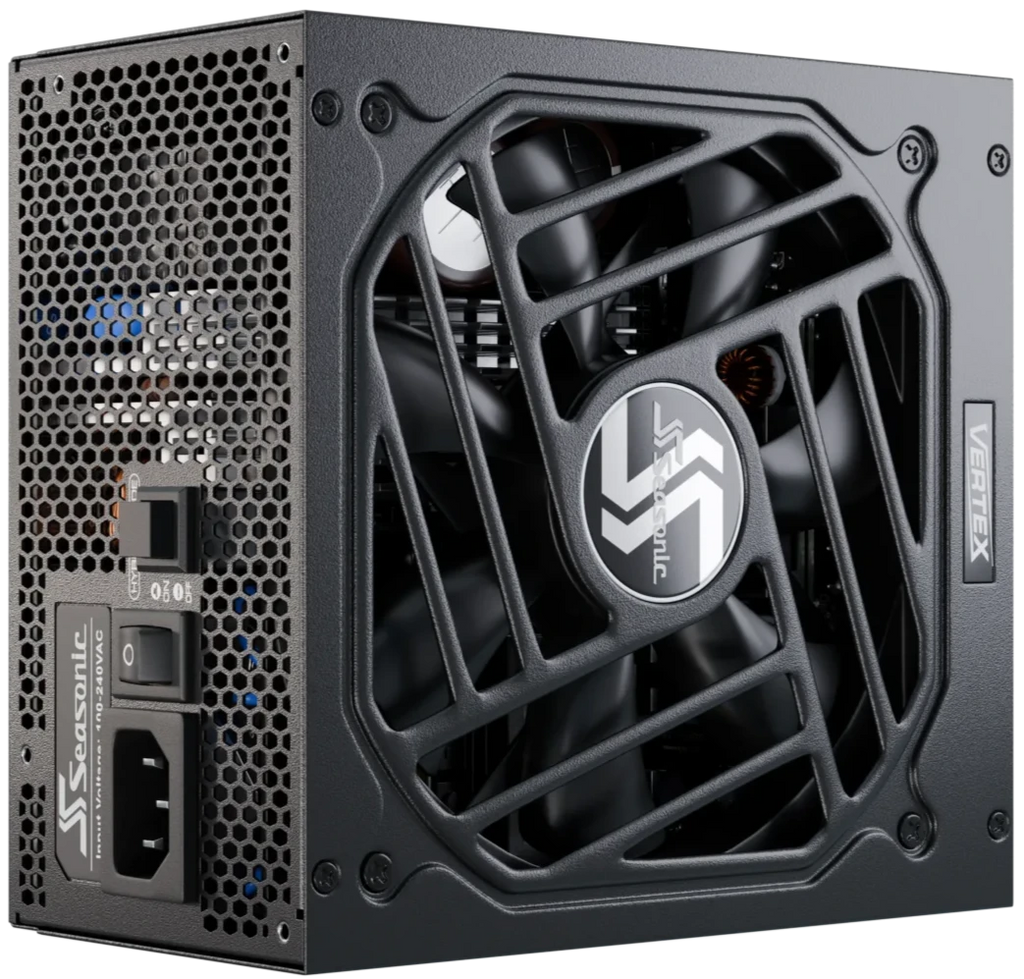

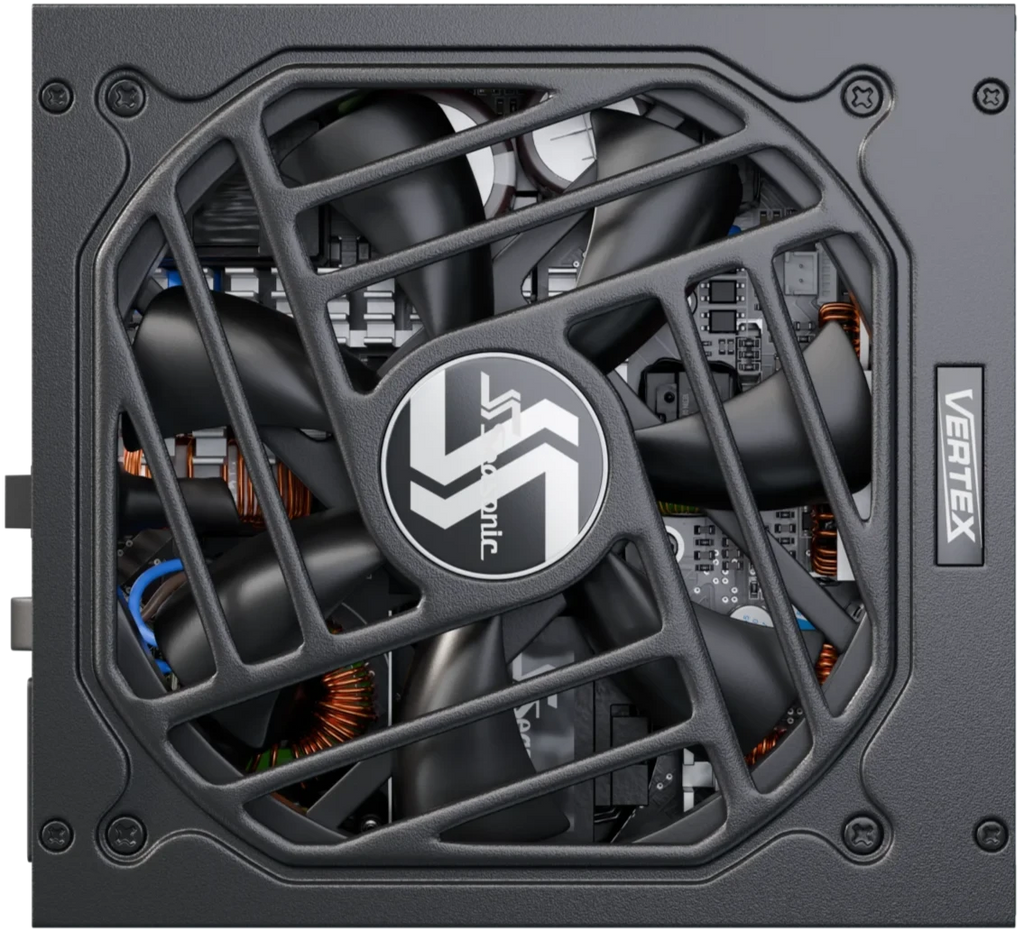

- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation.

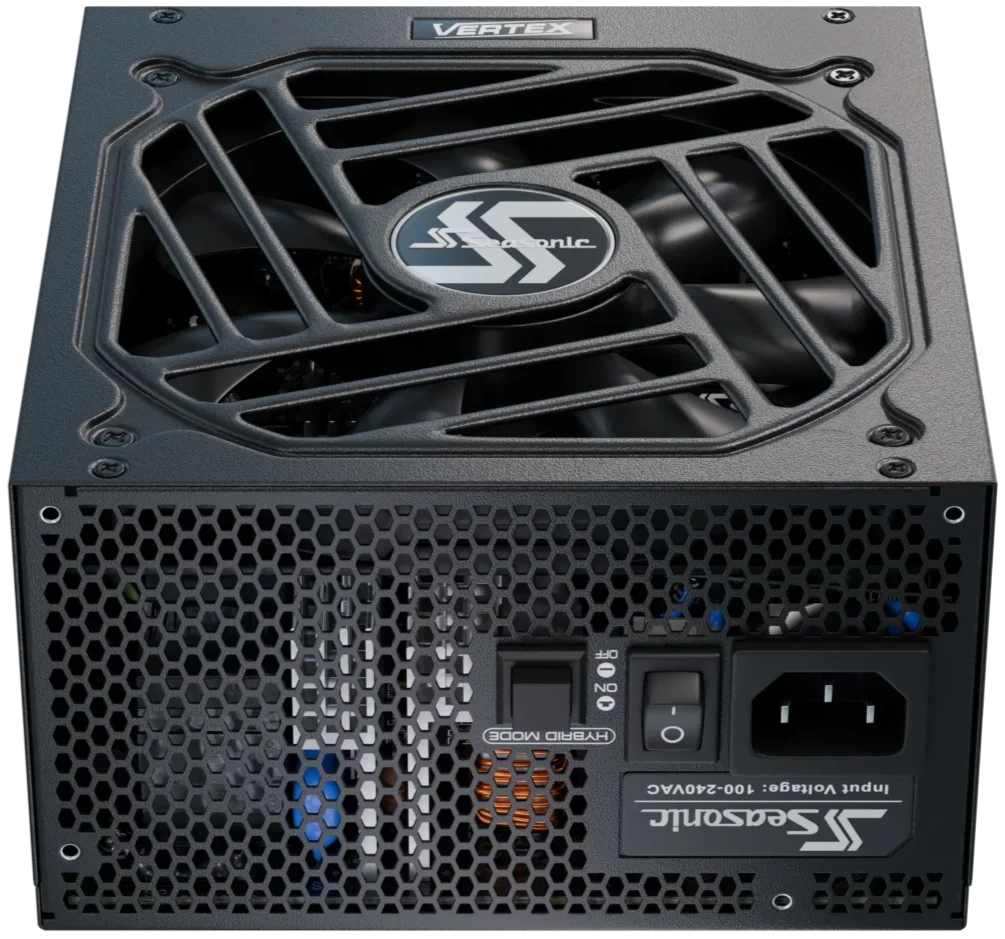

- Seasonic Hybrid Silent Fan Control for optimal cooling.
- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP.
- 12 years warranty – our commitment to high quality.
Update July 2024: The Seasonic VERTEX Series power supplies were initially shipped with 12VHPWR cables. Following the update to the ATX standard, we began replacing these with the new 12V-2×6 connectors. During this transition period, customers may receive either 12VHPWR or 12V-2×6 cables in the box. Please note that availability may vary by region. We apologize for any inconvenience this may cause.
-
80 PLUS® Gold
The Vertex GX ATX 3 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load. -
12 Years
Warranty -
Fully Modular
Cabling -
Dimensions
160 mm (L) x 150 mm (W) x 86 mm (H) -
ATX 3.1 & PCIe 5.1
Cybenetics - VERTEX GX-1000 / 850 / 750

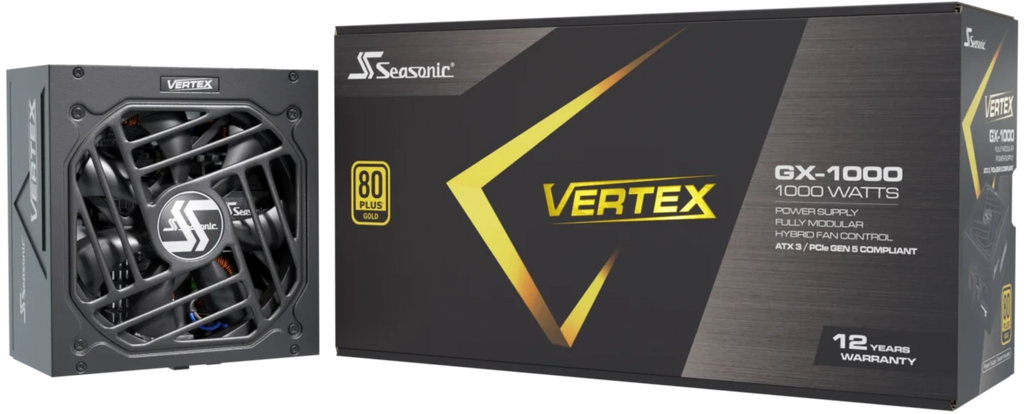

VERTEX GX-1000
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | Platinum (See report) | |
| Cybenetics Noise Level | Lambda A (See report) | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 160 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 13 - 6.5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 83 A | 0.3 A | 3 A | |
| 125 W | 996 W | 3.6 W | 15 W | |||
| Total continuous power | 1000 W | |||||
