描述
Synology E25G30-F2 雙埠 25GbE SFP28 網路擴充卡 (CL-25G30F2)
透過 E25G30-F2 雙埠 25GbE 網路轉接卡，將相容的 Synology 系統與 25GbE 網路無縫整合以發揮其完整潛力。

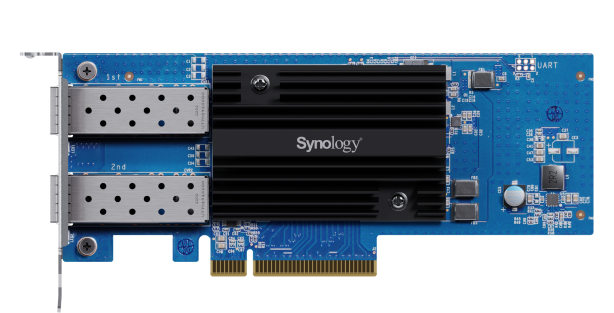

E25G30-F2
Dual-port 25GbE SFP28 add-in card for Synology systems
Throughput
Increase network performance with 25GbE connectivity
Flexibility
Optical SR, Optical LR, and DAC support
Compatibility
Designed for maximum performance and reliability in Synology systems
High-performance connectivity upgrade
Flexible SFP28 options
Support for short-range and long-range transceivers as well as DAC options enables flexible connectivity choices.
Link aggregation
Dual 25GbE ports can be combined into a Link Aggregation Group to boost throughput up to 50 Gb/s, while also providing port failover and load balancing functionality.1
CPU offloading and load balancing
Support for CPU offloading and load balancing technologies enables optimal system performance.
5-year warranty
At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.2 Learn more
|
Hardware Specifications
|
||
|---|---|---|
|
General
|
Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low Profile and Full Height | |
| Size (Height x Width x Depth) | 69 mm x 168 mm x 17.3 mm | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
|
Network
|
IEEE Specification Compliance |
|
| Data Transfer Rates | 25 Gbps/10 Gbps | |
| Supported Features |
|
|
| Notes | As mixed link speeds are not supported, both network ports must be configured with the same link speed. | |
|
Compatibility
|
||
|
Applied Models
|
|
|
| Notes |
|
|
