Highlights
- Seamless whole-home Wi-Fi coverage
- Supports UniFi Turbo, Maxis Fiber, Time Fibre

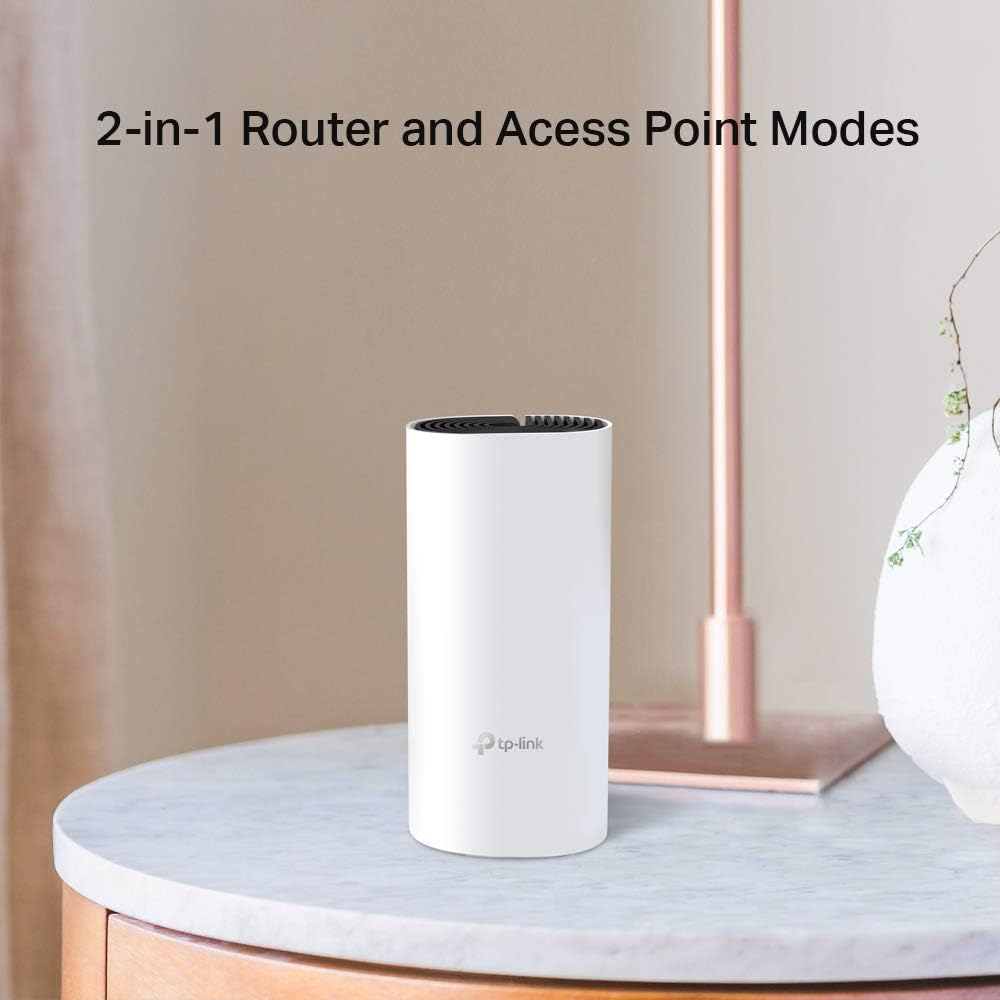

- Works as router or access point mode
- Designed for double storey house / 3800 sq.ft. / 5500sq. ft.
- Fast and stable connections with speeds of up to 1167 Mbps
- Lag-free Wi-Fi connections for over 100 devices
- Parental Controls limits online time and block inappropriate websites
- Setup is easier than ever with the Deco app
- 2 Years TP-Link Local Manufacturer Warranty
Product Description
Specifications
| POWER | ||||
| AC adapter input | 100-240V ~ 50/60Hz 0.4A | |||
| AC adapter output | 12V ⎓ 1.2A | |||
| HARDWARE FEATURES | ||||
| Processor | Qualcomm CPU | |||

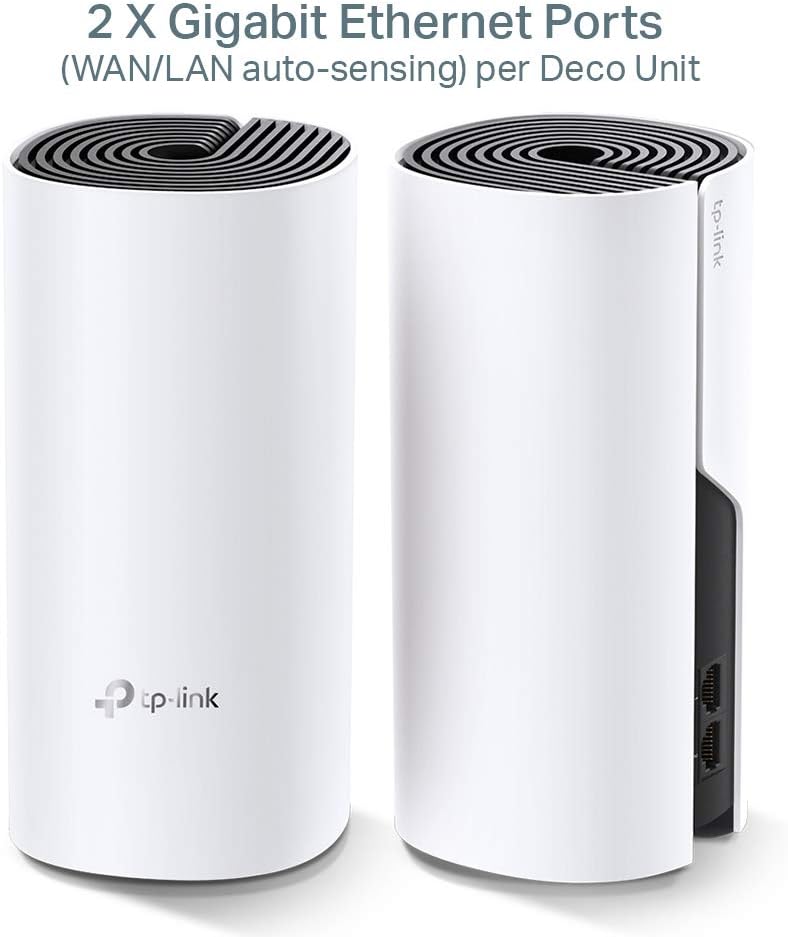

| Interface | 2 Gigabit Ethernet Ports (WAN/LAN auto-sensing) per Deco unit | |||
| Button | 1 Reset button on the underside | |||
| External Power Supply | 12 V/1.2 A | |||
| Dimensions | Φ3.6 in. x 7.5 in. (Φ90.7 mm x 190 mm) | |||
| Antenna Type | 2 internal dual-band antennas per Deco unit | |||
| WIRELESS FEATURES | ||||
| Wireless Standards | IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz | |||
| Frequency | 2.4 GHz and 5 GHz | |||
| Signal Rate | 300 Mbps on 2.4 GHz 867 Mbps on 5 GHz |
|||
| Transmit Power | FCC: <30 dBm CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
|||
| Wireless Security | WPA-PSK/WPA2-PSK | |||
| Advanced Functions | ● Router/ Access Point Mode ● Optional Ethernet Backhaul ● Guest network ● TP-Link Mesh Technology: MU-MIMO Auto Path Selection Self-Healing AP Steering Band Steering Beamforming |
|||
| SOFTWARE FEATURES | ||||
| Quality of Service | WMM | |||
| IPv6 | Support | |||
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP | |||
| Management | Local Management, Remote Management | |||
| DHCP | Server, Client | |||
| Port Forwarding | Support | |||
| Access Control | Blacklist | |||
| Firewall Security | SPI Firewall | |||
| Protocols | Supports IPv4 and IPv6 | |||
| Advanced Features | Parental Controls Quality of Service |
|||
| Advanced Functions | Monthly Reports Auto FW Update Expand Wi-Fi by adding more Deco units |
|||
| Guest Network | 2.4 GHz guest network x 1 5 GHz guest network x 1 |
|||
| Beamforming | Support | |||
| APP | Easy setup via Deco App | |||
| OTHERS | ||||
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS | |||
| Package Contents | Deco M4 (2-pack): 2 Deco units 1 RJ45 Ethernet Cable 2 power adapters 1 quick installation guide |
Deco M4 (3-pack): 3 Deco units 1 RJ45 Ethernet Cable 3 power adapters 1 quick installation guide |
||
| Smartphone/Tablet Requirements | iOS 9.0 or later, Android 4.4 or later | |||
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|||
