Specifications
wireless network | |
---|---|
standard |
Wi-Fi 6E IEEE 802.11ax 6 GHz IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
Wi-Fi speed |
AXE5400 6 GHz: 2402 Mbps (802.11ax, HE160) 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
Wi-Fi range |
4-7+ Bedroom Houses (3-pack) 3-5 Bedroom Houses (2-pack) 1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 4× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Tri-Band A newly-opened 6 GHz band brings more bandwidth and faster speeds Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
Wi-Fi Capacity |
Very High Tri-Band Distribute devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 6 Streams More than enough bandwidth for connected devices |
Operation mode |
Router Mode Access Point Mode |
Security | |
---|---|
Internet security |
SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
guest network |
1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Servers |
• Open VPN Server • PPTP VPN Server • L2TP/IPSec VPN Server |
VPN client |
• Open VPN Client • PPTP VPN Client • L2TP/IPSec VPN Client |
Wi-Fi Encryption |
WPA-Personal WPA2-Personal WPA3-Personal |
Hardware specifications | |
---|---|
network hole |

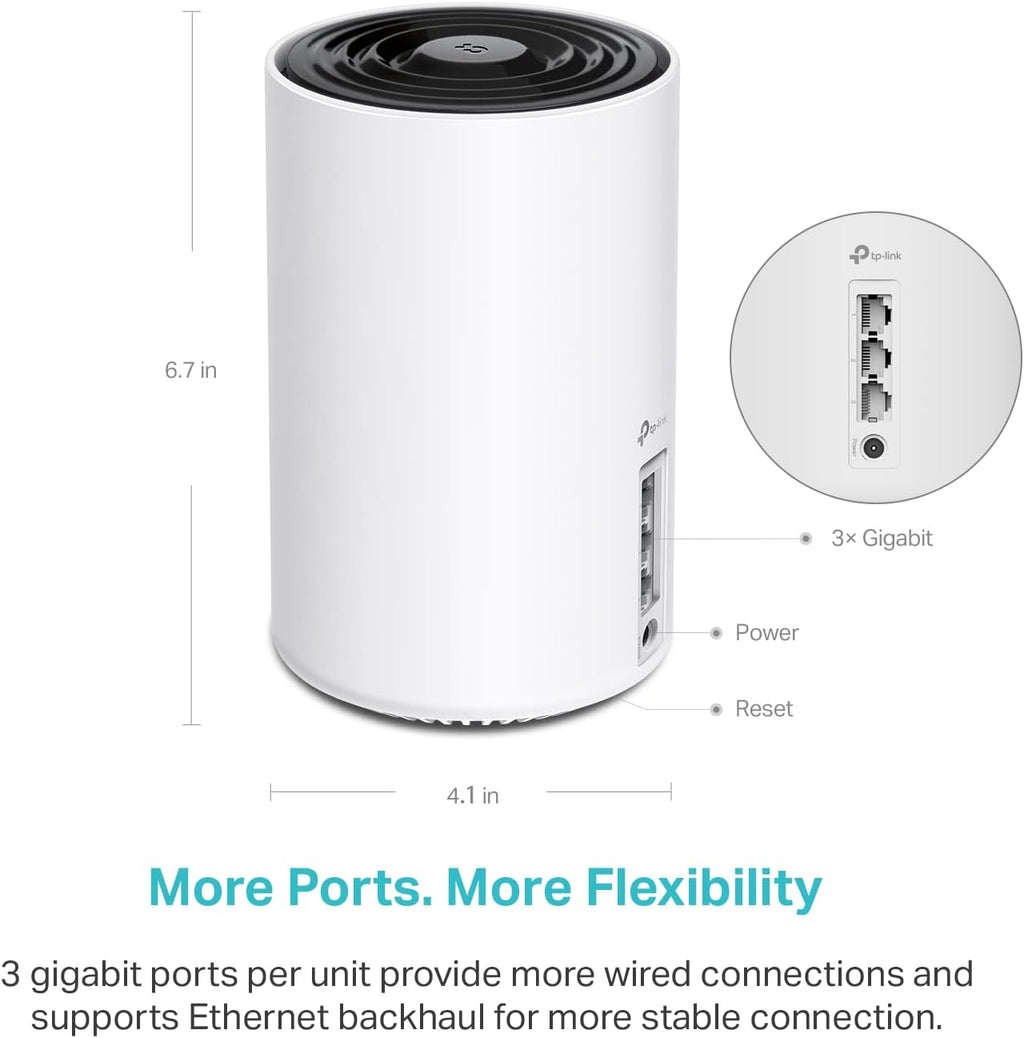

3× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing |
button | Reset Button |
software | |
---|---|
Advanced functions |
• Reboot Schedule • Tapo/Kasa onboarding • IoT network & Device Isolation • Static Routing Function • Node/Band Connection Preference |
protocol |
IPv4 IPv6 |
Service tools | HomeShield |
Parental supervision |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Service quality |
HomeShield QoS QoS by Device |
Cloud services |
OTA Firmware Upgrade TP-Link ID DDNS |
NAT forwarding |
Port Forwarding UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS | TP-Link |

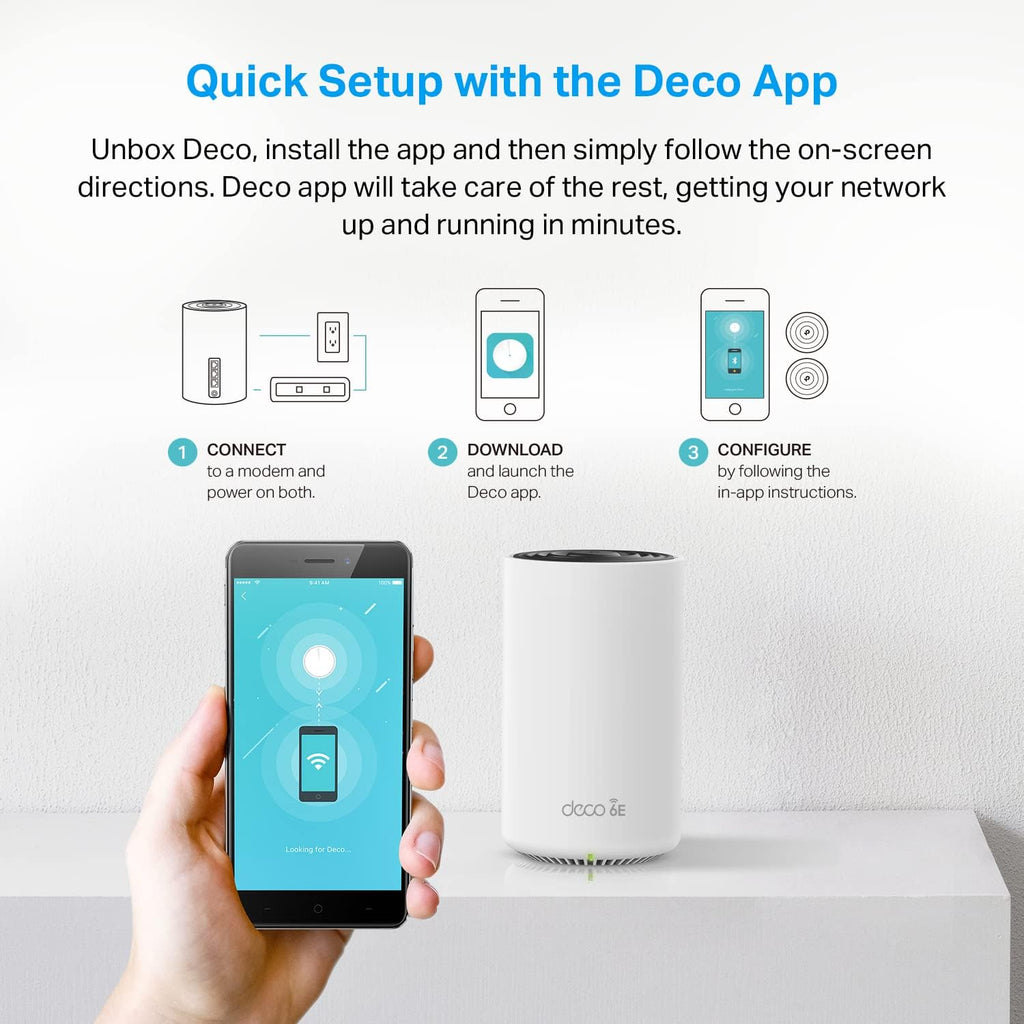

manage | Deco App |
test data | |
---|---|
Wi-Fi transmission power |
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) <23 dBm (6 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm(5 GHz) <30 dBm(6 GHz) |
entity | |
---|---|
Volume(W×D×H) |
4.1 × 4.1 × 6.7 in (105 × 105 × 169 mm) |
Packaging contents |
Deco XE75 (3-pack) 3 Deco XE75 units 1 RJ45 Ethernet cable 3 Power adapters 1 Quick Installation Guide Deco XE75 (2-pack) 2 Deco XE75 units 1 RJ45 Ethernet cable 2 Power adapters 1 Quick Installation Guide Deco XE75 (1-pack) 1 Deco XE75 units 1 RJ45 Ethernet cable 1 Power adapters 1 Quick Installation Guide |
Other specifications | |
---|---|
Certification | CE, FCC, RoHS |
environment |
Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
