Highlights
- Omada Wi-Fi network controller
- Accessible through direct access, cloud portal or mobile app
- Pre-installed Omada controller software. Power it on and start to play.
- No license fee, no monthly fee, manage from anywhere, anytime
- Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations
- Powerful CPU and USB auto backup for robustness and stability
- Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
- 3 Years Local Manufacturer Waranty
Product Description

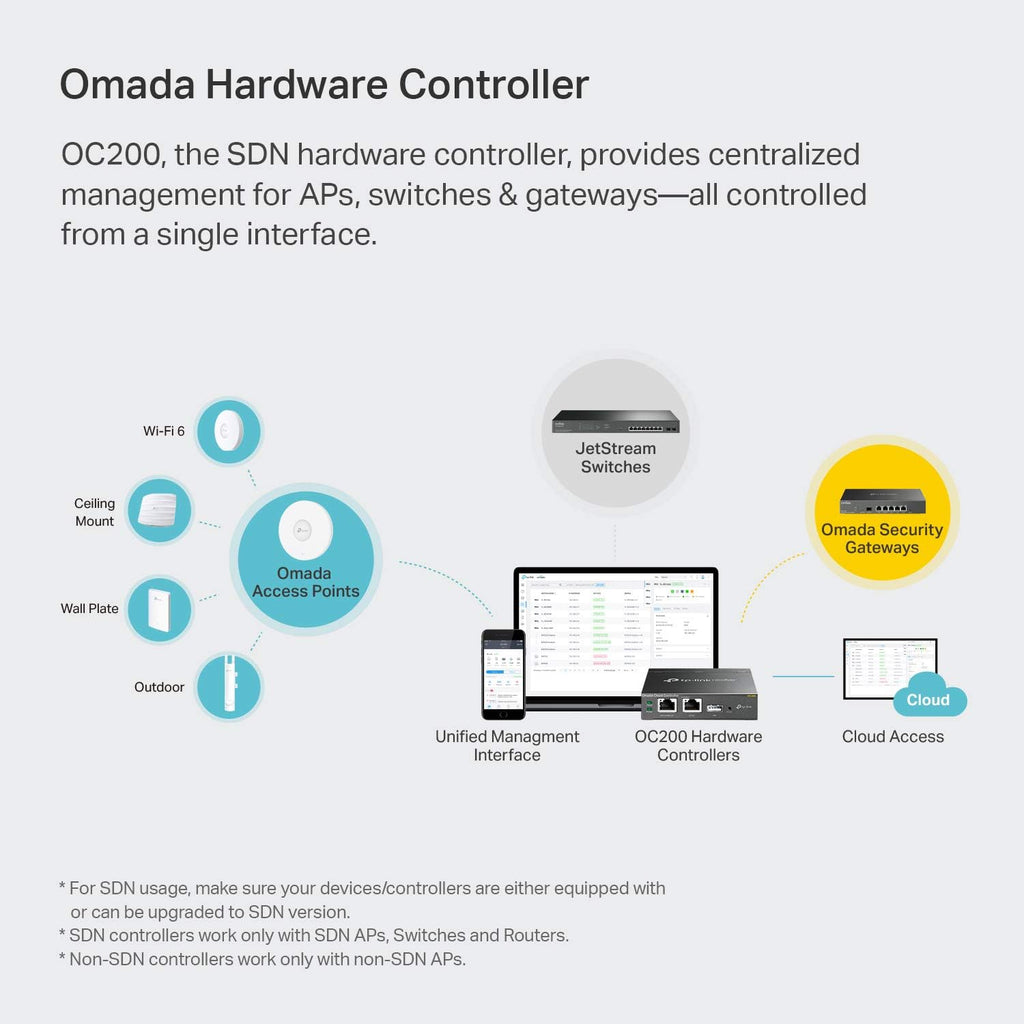

Omada Hardware Controller & Centralized Management
The Omada hardware controller (OC200) for the Omada Software Defined Networking (SDN) platform, provides centralized management of access points, switches, and gateways—all controlled from a single interface.
Real-time Network Monitoring and Maintenance
Easy and Intelligent Network Monitoring
The easy-to-use dashboard offers you real-time network status; usage and traffic distribution; network condition logs, abnormal event warnings, notifications; and even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

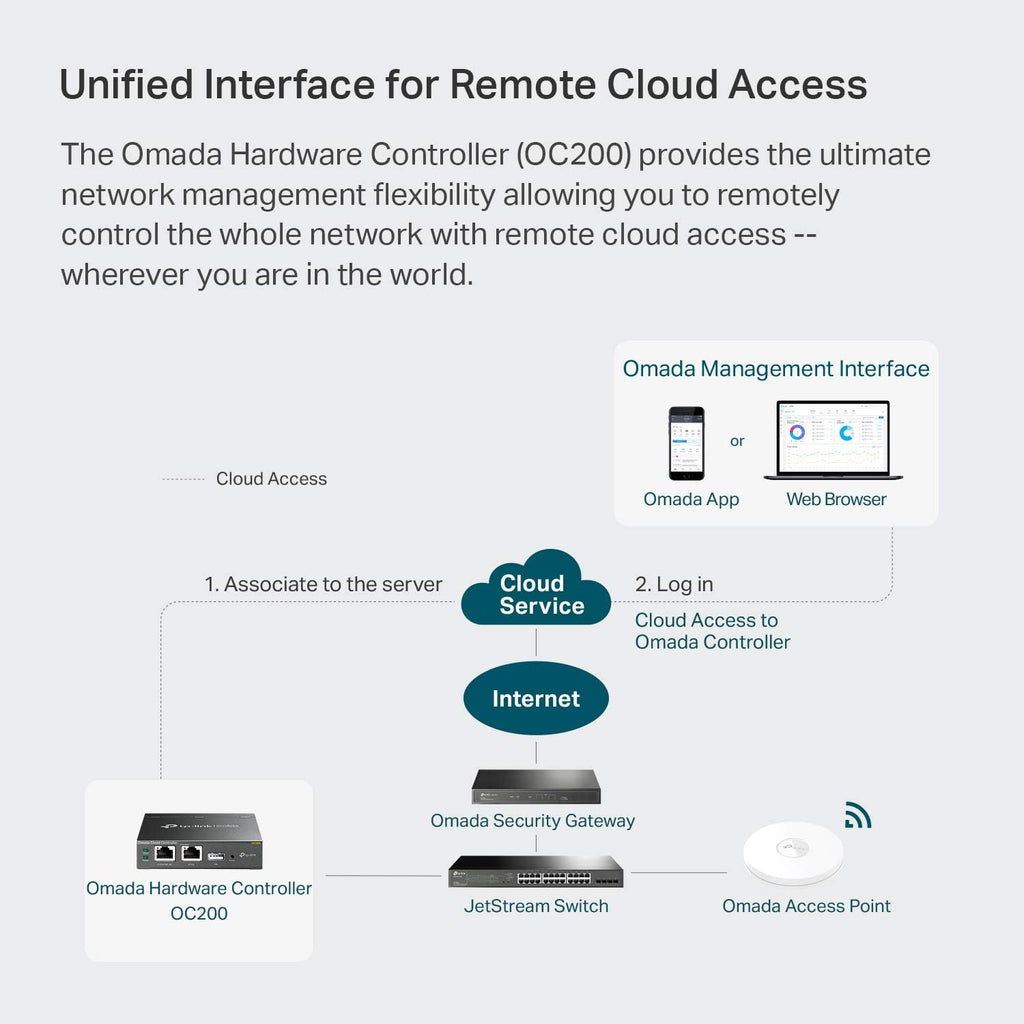

Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of a finger using your smartphone from anywhere in the world.
Easier Network Maintenance Guaranteed
Batch, Multi-Site Management & Remote, FW Updates
Improve network maintenance without needing to configure on-site and manage a batch of devices or each one individually.
Powerful Scheduling
Maintain your network easily with more automated and effective processing. No manual tasks required.
Specification
| Interface | 2 × 10/100Mbps Ethernet Port 1 × USB 2.0 Port for configuration backup 1 × Micro USB Port for powe |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/1A） |
| Power Consumption | 5 W |
| Dimensions | 3.9 × 3.9 × 1.0in. (100 × 98 × 25mm) |
| Management Scale | 50 EAPs |
| Wireless Fuction | L3 Management Multi-SSID Load Balance Band Steering Airtime Fairness Beamforming Rate Limit Wireless Schedule QoS |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection |
| AP Management | Automatic Discovery Unified Configuration Reboot Schedule Batch Firmware Upgrade LED ON/OFF |
| Authentication | WPA Personal and Enterprose Captive Portal Facebook login SMS authentication Voucher authentication |
| Certification | FCC, RoHS |
| Package Contents | Omada Cloud Controller OC200 Quick Installation Guide Ethernet Cable |
| System Requirements | Internet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
