Highlights
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

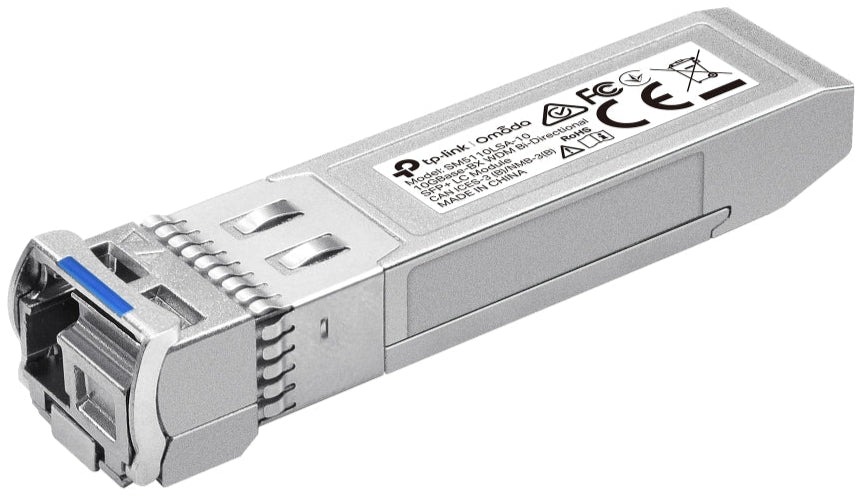

- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
Specifications
| Transceiver | |
|---|---|
| Standards and protocols |
• IEEE 802.3ae • SFF 8431, SFF 8432, SFF-8472 |
| Wavelength |
•TX: 1330nm •RX: 1270nm |
| Power supply | 3.3V |
| Fiber type | 9μm/125μm Single-Mode |
| Max. Cable Length | 10km |
| Data rate | 10.3125 Gbps |
| Connector | LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment |
• Operating Temperature: 0°C to 70°C (32–158 ℉) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH non-condensing • Storage Humidity: 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| Hot swappable | Yes |
| Dimensions (W x D x H) | 2.24*0.55*0.47 in (57*14*12.0 mm) |
