Highlights

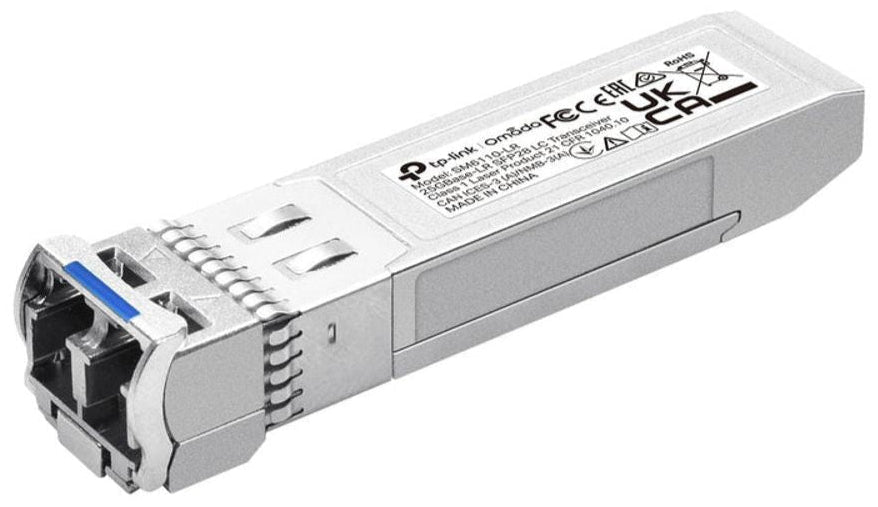

- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
- 5 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| PACKAGE CONTENTS | |
| Package Contents | • SM6110-LR • Installation Guide |
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions ( W x D x H ) | 2.24*0.55*0.47 in (57*14*12 mm) |
| TRANSCEIVER | |
| Standards and Protocols | • IEEE 802.3ae, 802.3cc • SFF-8402, SFF-8431, SFF-8432, SFF-8472 • eCPRI, CPRI • TCP/IP |
| Wavelength | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Support Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps |

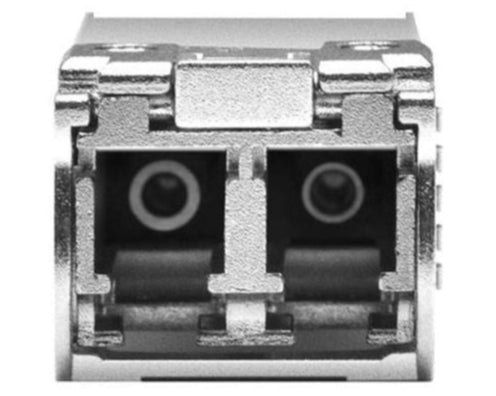

| Connector | Duplex LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0°C to 70°C (32°F to 158°F) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH, Non-Condensing • Storage Humidity: 5% to 90% RH, Non-Condensing |
