Highlights
- Multi-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
- 5 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| PACKAGE CONTENTS | |
| Package Contents | • SM6110-SR • Installation Guide |
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |

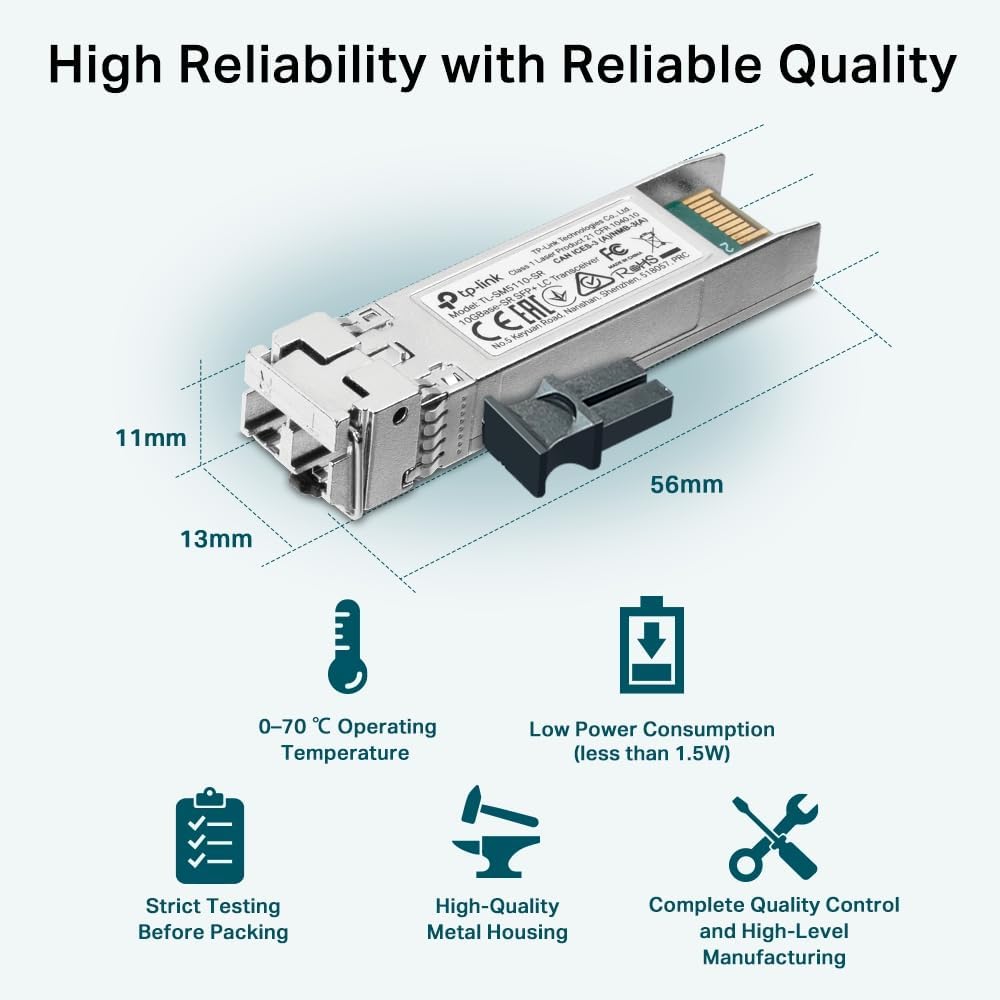

| Dimensions ( W x D x H ) | 2.24*0.55*0.53 in (57*14*13.45 mm) |
| TRANSCEIVER | |
| Standards and Protocols | • IEEE 802.3ae, 802.3by • SFF-8402, SFF-8431, SFF-8432, SFF-8472 • eCPRI, CPRI • TCP/IP |
| Wavelength | 850nm |
| Power Supply | 3.3V |
| Fiber Type | 50/125um or 62.5/125um Multi-mode |
| Max. Cable Length | 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps |
| Support Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps |

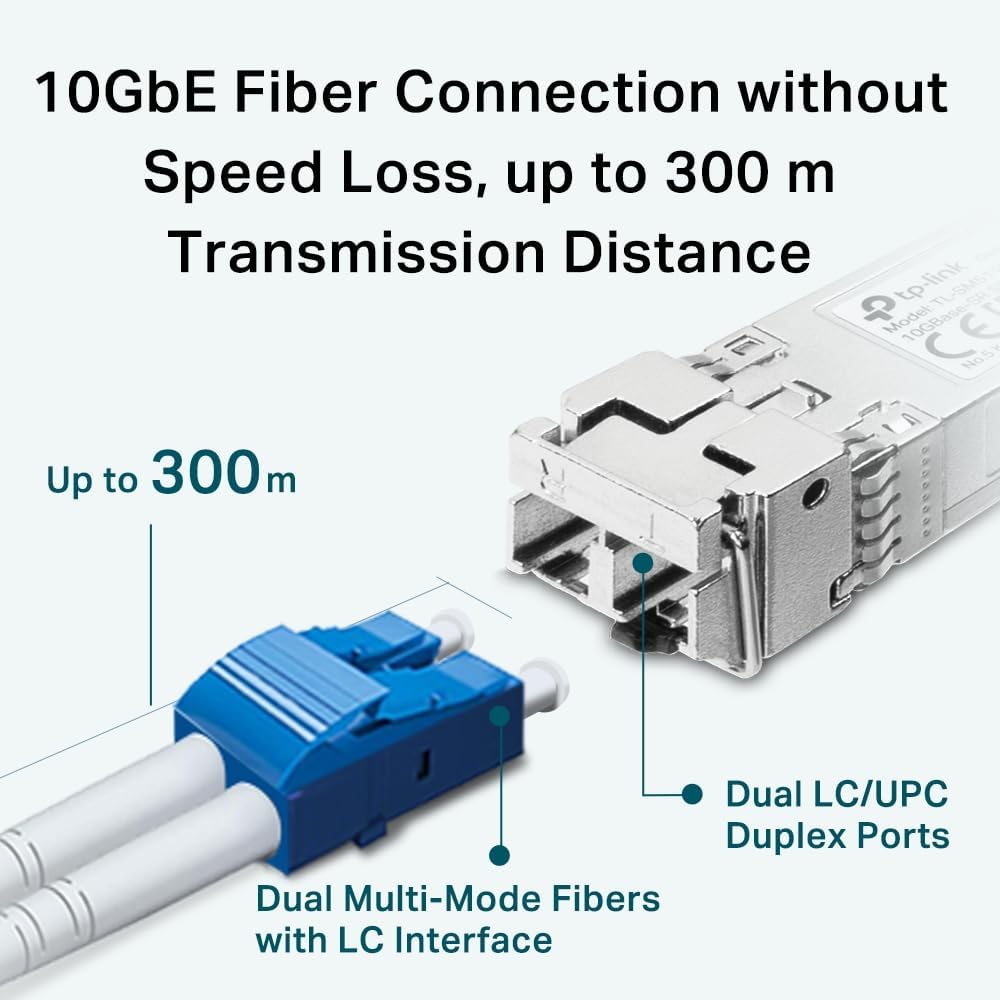

| Connector | Duplex LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0°C to 70°C (32–158 ℉) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH non-condensing • Storage Humidity: 5% to 90% RH non-condensing |
