Highlights
- 25G SFP28 connector on both sides
- Drives 25 Gigabit Ethernet (1m distance)
- 5 Years TP-Link Local Manufacturer Warranty
Product Descriptions
What This Product Does

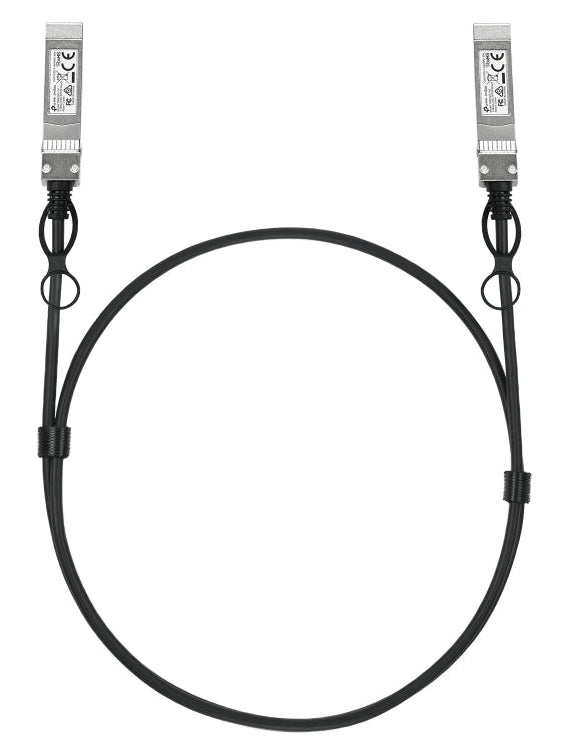

With a passive twin-ax cable assembly of 1 meter and two SFP28 connectors on each side, SM6220-1M is suitable for short distances and offers a cost-effective way to connect within racks and across adjacent racks.
Specifications
| GENERAL | |
| Product Dimensions | • Plug: 2.26*0.53*0.34 in (57.5*13.55*8.55 mm); • Overall length: 39.37 in (1,000 mm) |
|---|---|
| SFP28 Cable | |
| Environment | • Operating Temperature: 0–70 ℃ (32–158 ℉) • Storage Temperature: -40–85 ℃ (-40–185 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Supported Data Rate | 25 Gbps / 10 Gbps / 1 Gbps |
| Conductor | Silver Plated Copper |
| Wire Gauge | 30AWG |
| Minimum Bend Radius | 22.5mm |
| Cable Length | 1 m |
| Warranty | 5 Years TP-Link Local Manufacturer Warranty |
